Window Control Switch

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

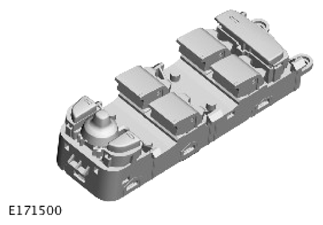

Driver Door Switchpack

G14011017Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The driver door switchpack is installed in the driver door, powered by the DDM  through hardwire connection. When the window control switches in the driver door switchpack are used, the switchpack translates the switch movement into a Local Interconnect Network (LIN) message. The driver door switchpack is connected to the DDM  through a LIN  connection.

All window control switches are of the non-latching rocker type. The switches have 2 switching positions in each direction. The first position is for inch mode (open/close) and the second position is for one touch mode (open/close).

The rear window isolation switch is installed in the driver door switchpack.

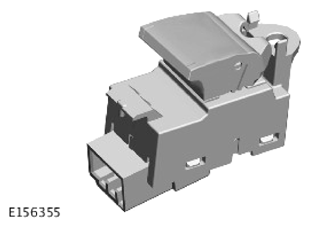

Passenger Door Switch

G14011018Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Individual door switches are installed in each of the passenger doors, each powered by the respective door module. When the window control switch is used, the passenger door switch translates the switch movement into a signal which is provided to the respective door module. Each passenger door switch is hardwired to the related door module.

All window control switches are of the non-latching rocker type. The switches have 2 switching positions in each direction. The first position is for inch mode (open/close) and the second position is for one touch mode (open/close).
