Integrated Control Panel

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

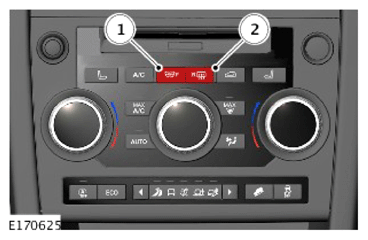

G14011022Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Heated windshield switch
2 Heated rear window switch

The heated windshield and heated rear window switches are located in the Integrated Control Panel (ICP). The ICP  is connected to the HVAC Control Module (HVAC) through private CAN  connection.
