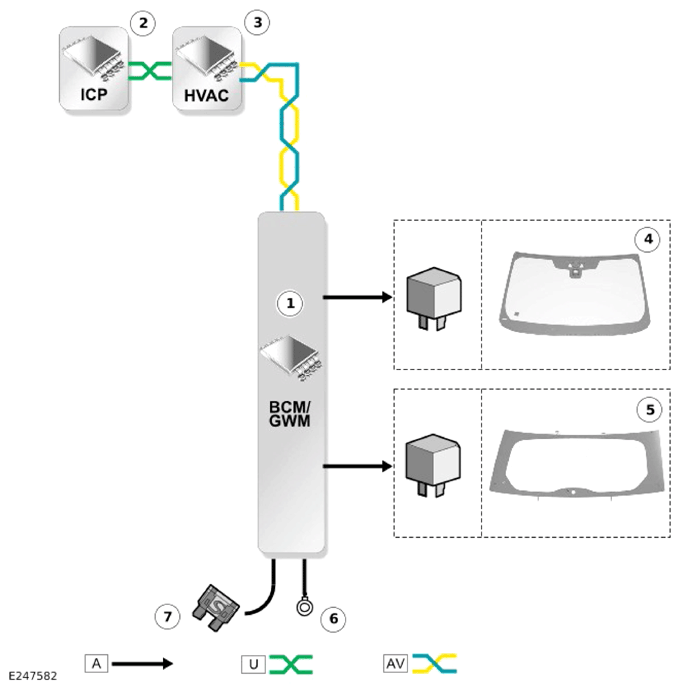

Control Diagram - 3 Of 3 - Heated Rear Window And Heated Windshield
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: U = PRIVATE CAN BUS: AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
BCM
/GWM |
| 2 |
ICP |
| 3 |
HVAC |
| 4 |
Windshield heater element |
| 5 |
Rear window heater element |
| 6 |
Ground |
| 7 |
Power supply |
