Component Location - 3 Of 3 - Door Window
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

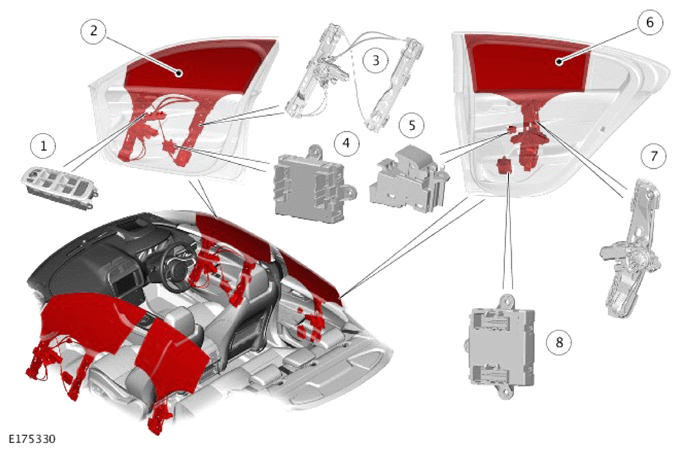

Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar. The driver side is shown, the passenger side is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver door switchpack |
| 2 | Front right door window |
| 3 | Front right door window regulator |
| 4 | Driver Front Door Module (DDM) |
| 5 | Passenger door switch |
| 6 | Rear right door window |
| 7 | Rear right door window regulator |
| 8 | Driver Rear Door Module (DRDM) |
