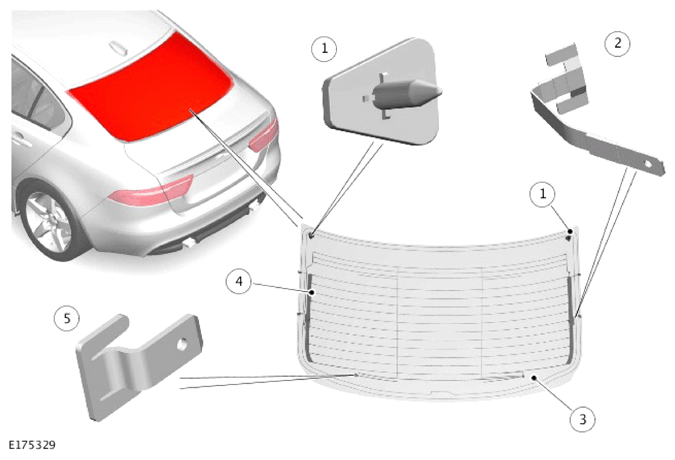

Component Location - 2 Of 3 - Rear Window
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The rear window is serviceable as whole assembly only.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Locator pin |
| 2 |
Rear window heater element connector |
| 3 |
Rear window |
| 4 |
Heater element |
| 5 |
Antenna amplifier connections |
