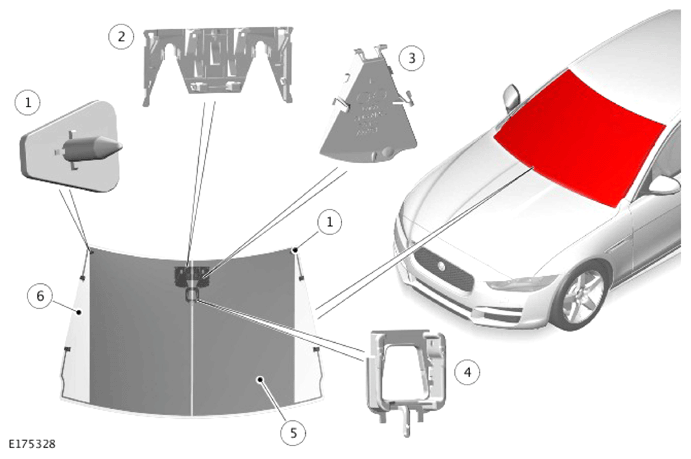

Component Location - 1 Of 3 - Windshield
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The windshield is serviceable as whole assembly only.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Windshield locator pin (quantity 2) |
| 2 |
Mounting bracket |
| 3 |
Image Processing Module 'A' (IPMA) bracket (quantity 2) |
| 4 |
Rain/light sensor bracket |
| 5 |
Windshield heater element |
| 6 |
Windshield |
