Overhead Console (G1851109): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. CAUTION:
    • Using a suitable trim tool release the overhead console clips.
    • Take extra care not to damage the edges of the component.

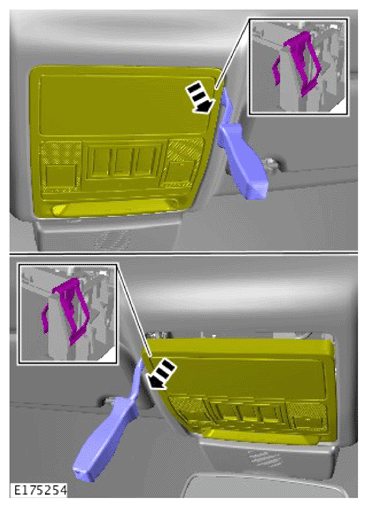

    G14011286Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 clips.
    • Release the overhead console.

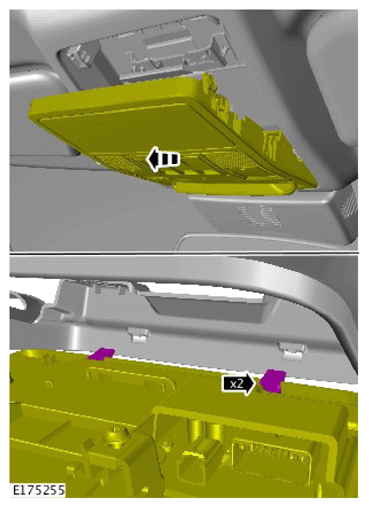

  2. G14011287Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 clips.

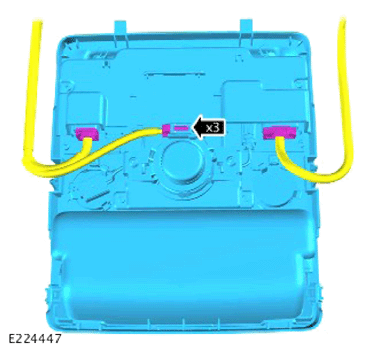

  3. G14011288Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 3 electrical connectors.
    • Remove the overhead console.

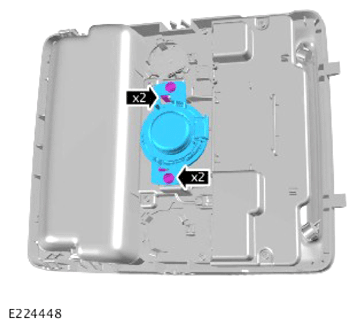

  4. G14011289Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Remove the voice control microphone.
