Instrument Panel Lower Trim Panel (G1851697): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Make the SRS system safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS

Refer to: STANDARD WORKSHOP PRACTICES
Refer to: STEERING WHEEL

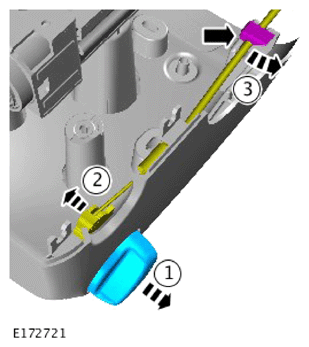

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

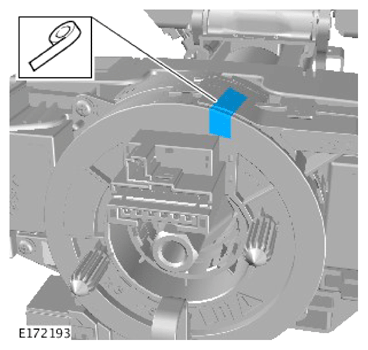

CAUTION: Make sure that the clockspring rotor does not rotate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure with adhesive tape.

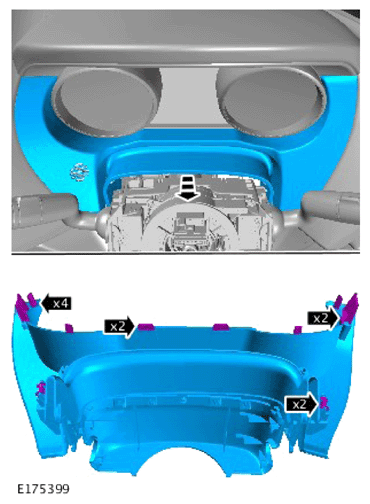

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Vehicles with electronic steering column.

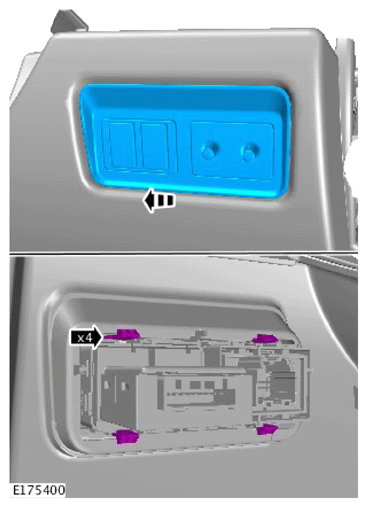

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Vehicles with manual steering column.

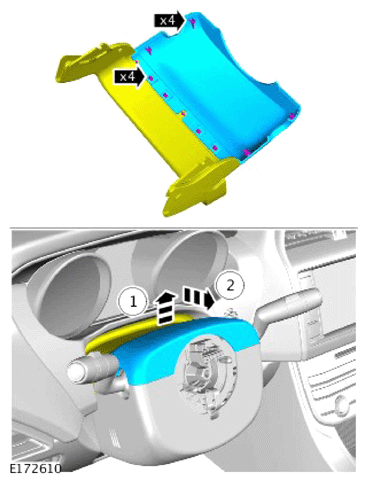

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

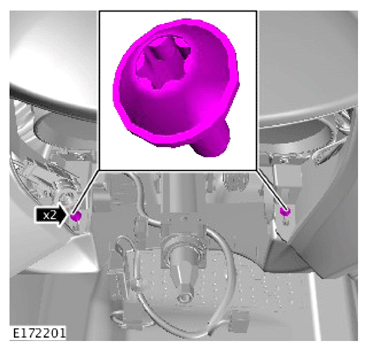

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

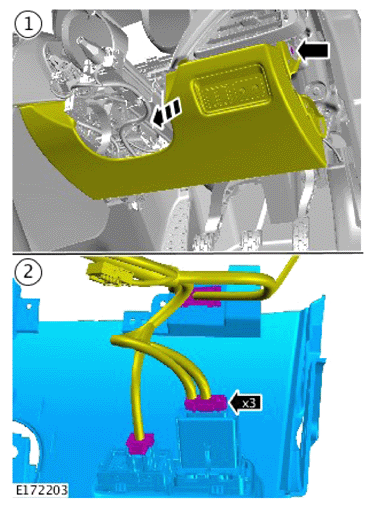

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

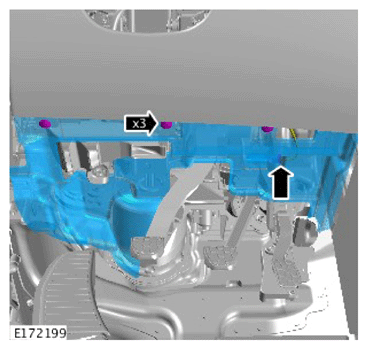

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

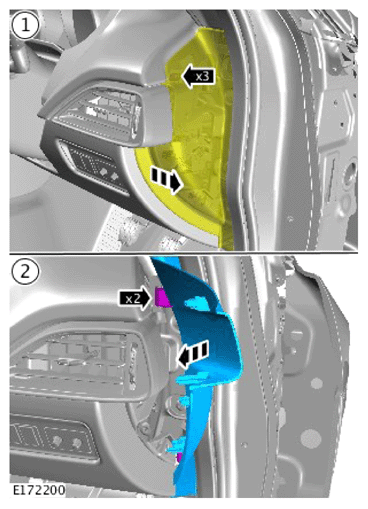

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Do not disassemble further if the component is removed for access only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
