GLOVEBOX (G2259746): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

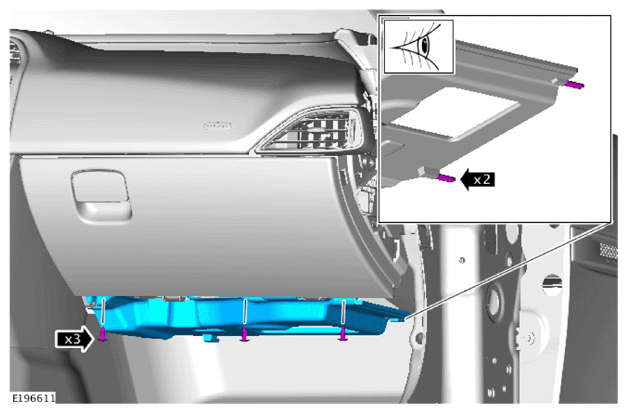

  1. G14011247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Remove the instrument panel lower trim.

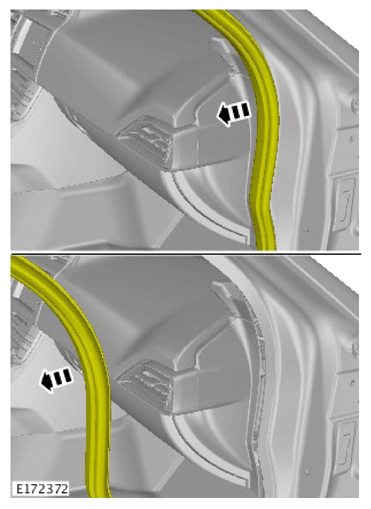

  2. G14011248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the front door aperture seal.

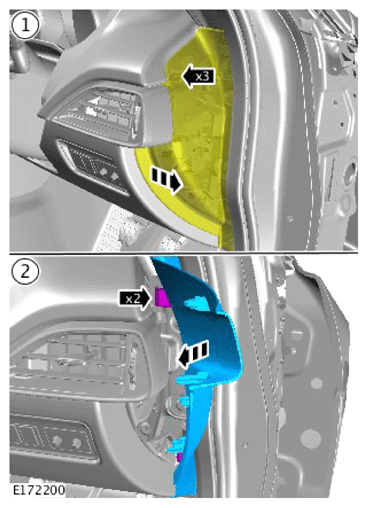

  3. G14011249Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the instrument panel side trim.

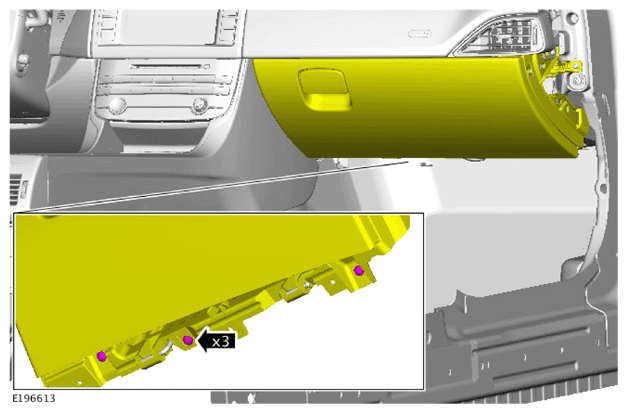

  4. G14011250Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 3 screws.

  5. G14011251Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 7 screws.

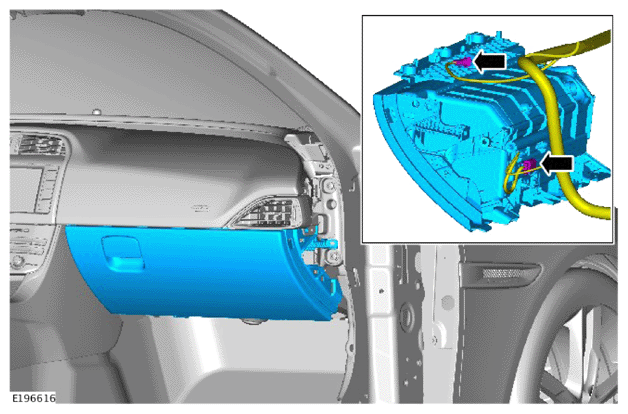

  6. G14011252Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the glovebox.
    • Disconnect the 2 electrical connectors.
