Floor Console Side Trim Panel (G1851774): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Right shown, left is similar.
  1. Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
  2. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  3. NOTE: This procedure must be carried out on both sides.

    Refer to: FRONT ROW SEAT

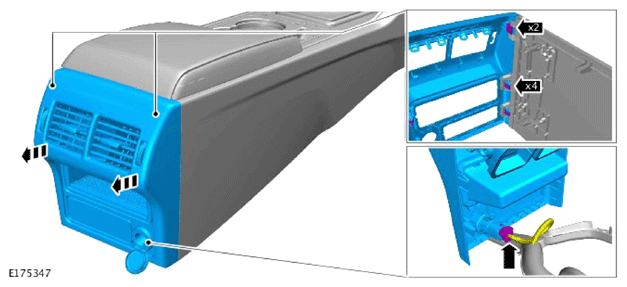

  4. G14011241Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

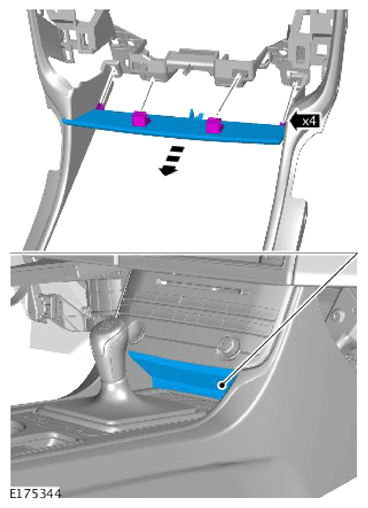

  5. G14011242Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

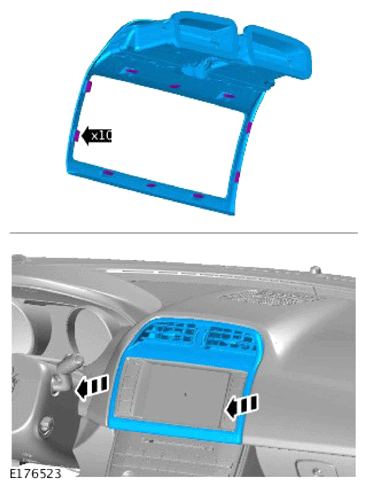

  6. G14011243Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

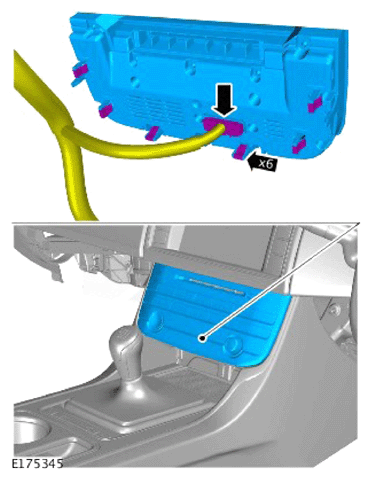

  7. G14011244Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

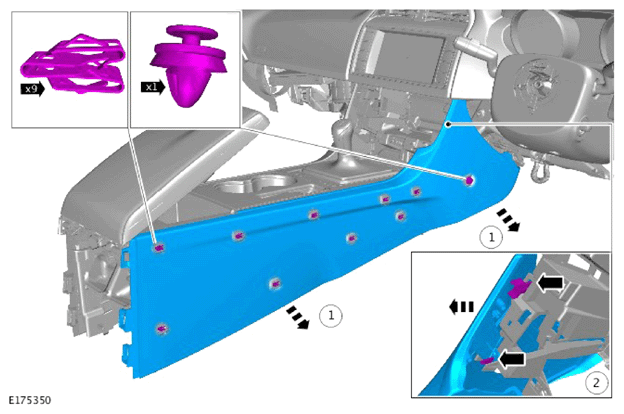

  8. G14011245Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
