Floor Console (G1851773): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use a suitable trim tool.

NOTE:

It is not necessary to remove the lower instrument panel when removing the floor console.
It is not necessary to remove the front seats when removing the floor console.
Removal steps in this procedure may contain installation details.

The following step(s) applies to:

All vehicles

Make the air bag supplemental restraint system (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

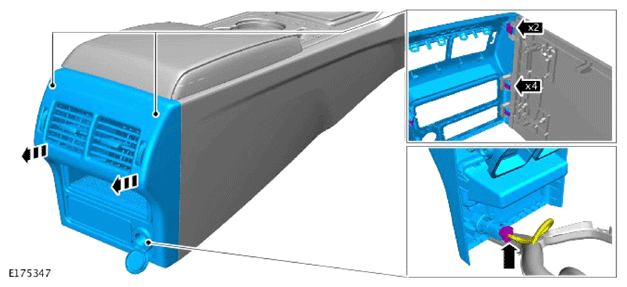

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

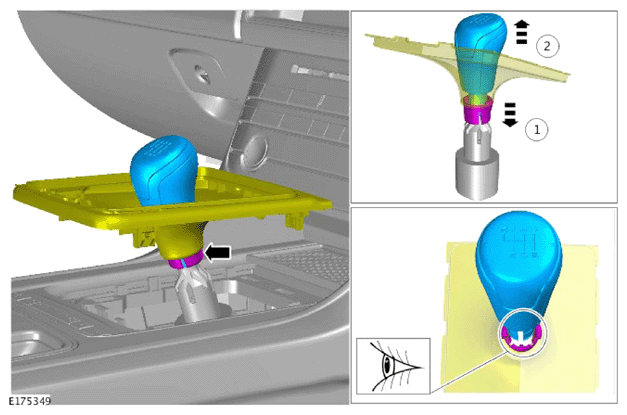

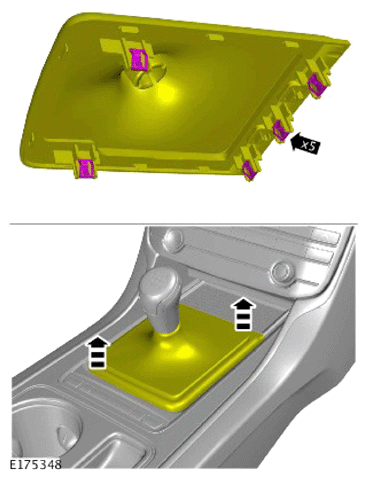

Vehicles with manual transmission

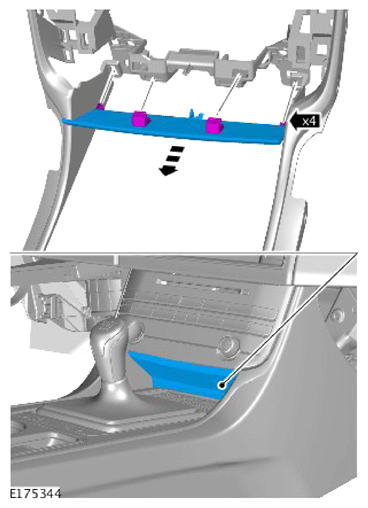

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

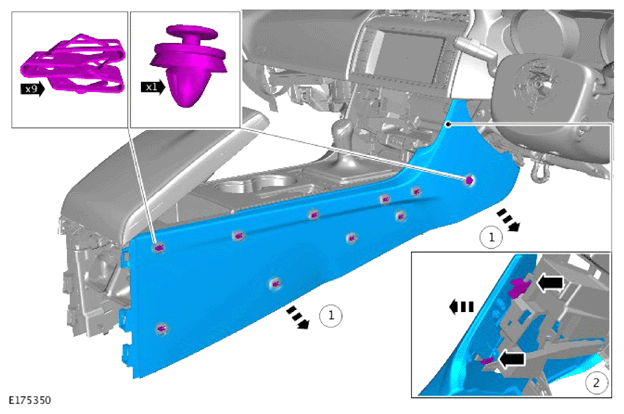

NOTE: This procedure must be carried out on both sides.

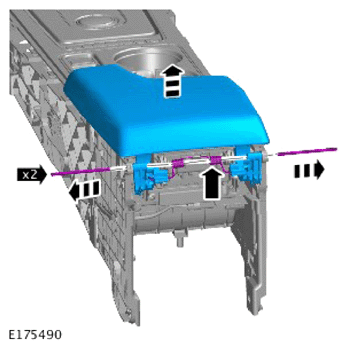

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: This procedure must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

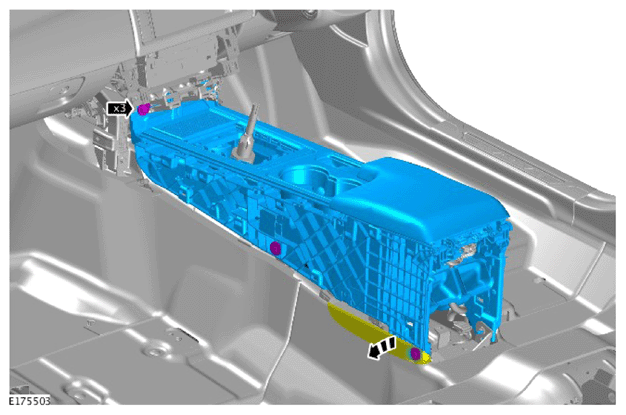

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

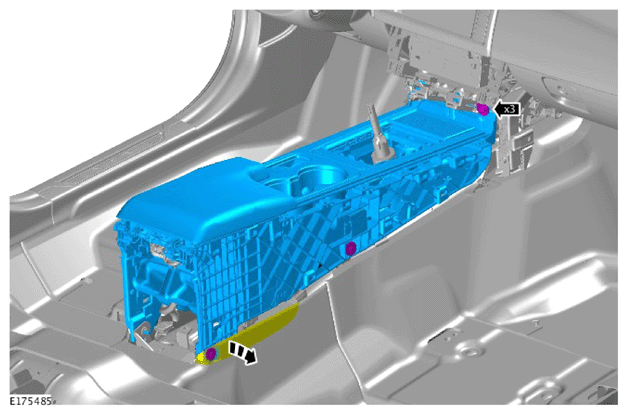

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

The following step(s) applies to:

Vehicles with manual transmission
NOTE: Do not disassemble further if the component is removed for access only.

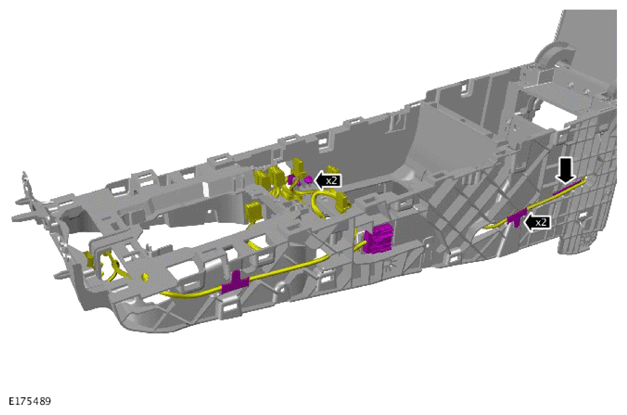

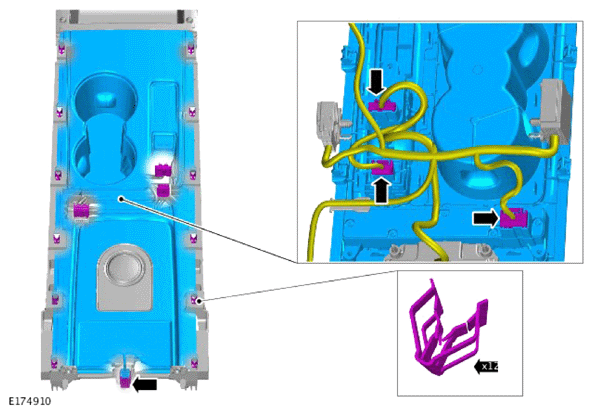

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Vehicles with automatic transmission
NOTE: Do not disassemble further if the component is removed for access only.

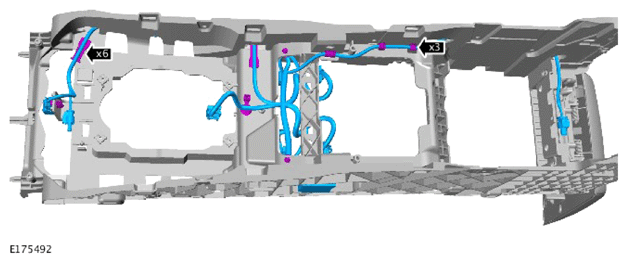

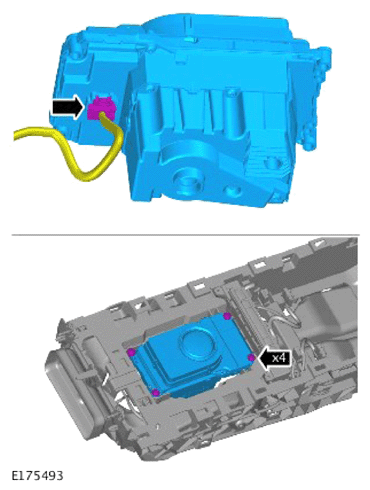

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

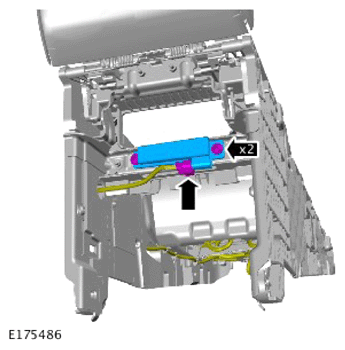

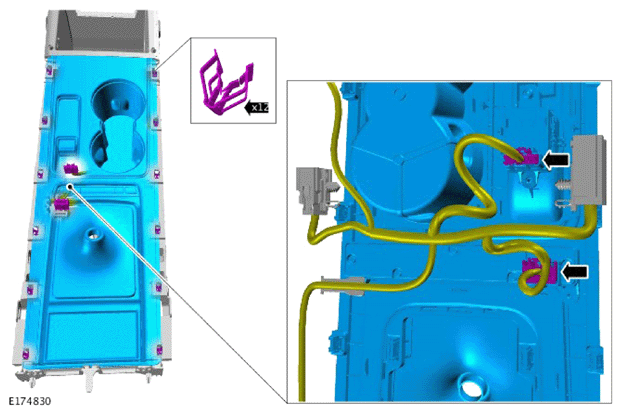

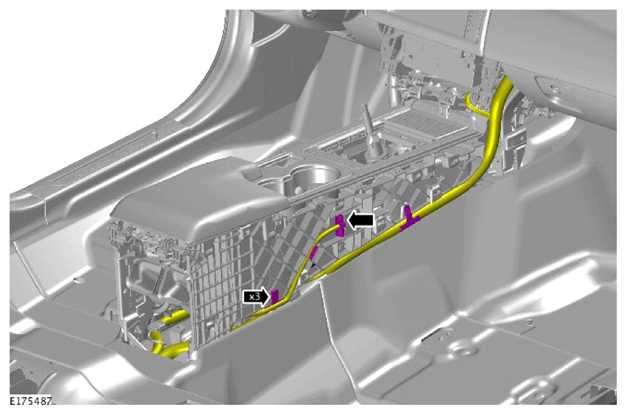

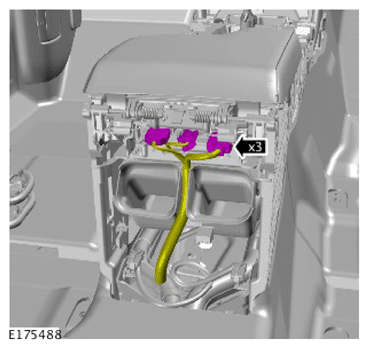

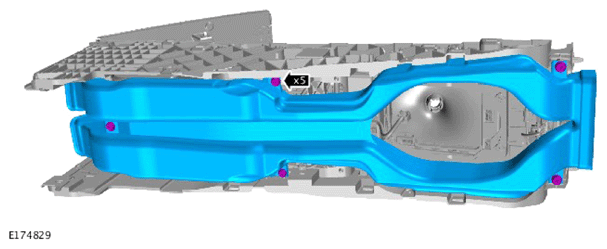

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

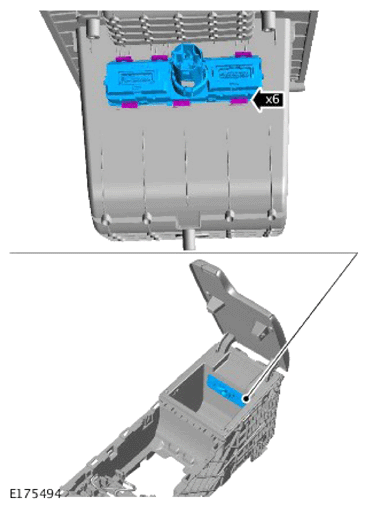

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

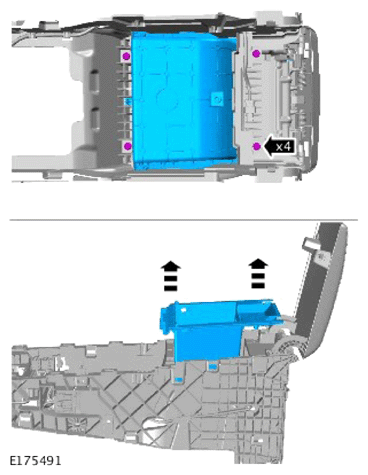

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
