Floor Console (G1851773): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

  1. To install, reverse the removal procedure.

    The following step(s) applies to:

    Vehicles with manual transmission

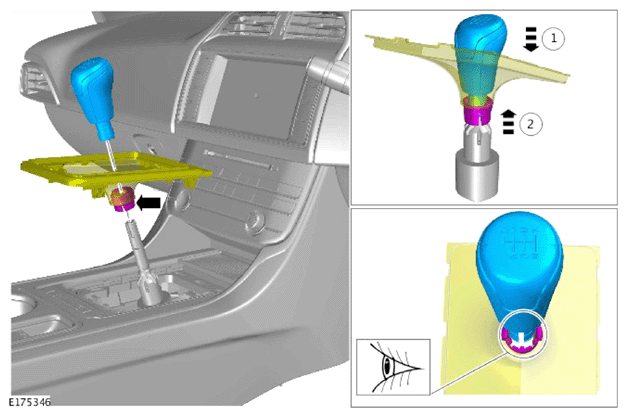

  2. G14011225Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
