Positive Crankcase Ventilation Cap (G2370203): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
CAUTION:
- Damaging the positive crankcase ventilation cap is unavoidable.
- Take care not to damage the camshaft cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

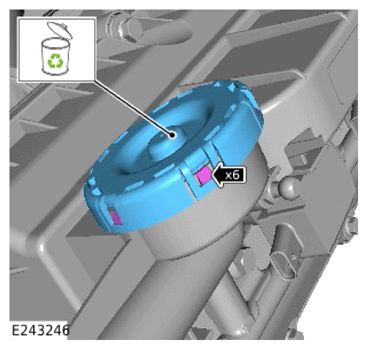

Remove and discard the positive crankcase ventilation cap.
CAUTION: The positive crankcase ventilation cap spring will be under tension, take care when removing it from the camshaft cover.

NOTE: Note the orientation of the positive crankcase ventilation cap seal and spring prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

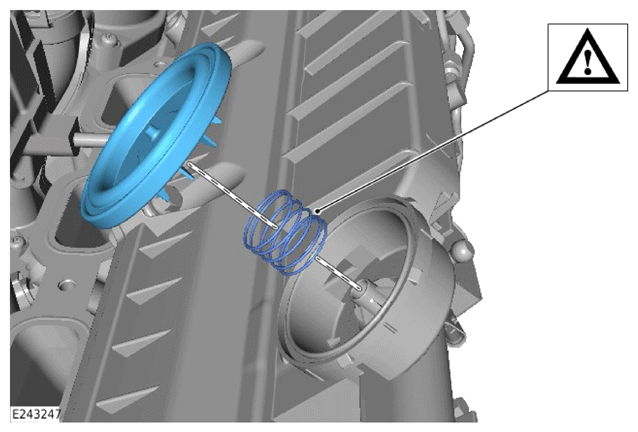

- Remove the positive crankcase ventilation cap seal and spring.
- Retain the positive crankcase ventilation spring for the installation.
