Full Load Breather
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

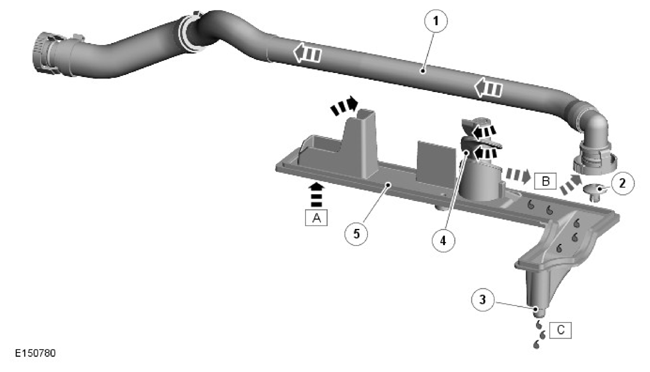

| ITEM | DESCRIPTION |
|---|---|
| A | Gas and oil vapor |
| B | Gas vapor |
| C | Oil |
| 1 | Flexible hose |
| 2 | Check valve |
| 3 | Oil drain |
| 4 | Engine vent oil separator |
| 5 | Baffle plate |
The full load breather consists of an engine vent oil separator, a check valve and a flexible hose. The engine vent oil separator and the check valve are installed in the top of the left camshaft cover. The flexible hose connects the left camshaft cover to the clean air duct of the intake air distribution and filtering system.
A baffle plate, which incorporates a gas intake and an oil drain, is installed over the channel. The check valve is installed in the gas outlet from the channel. The check valve controls the fresh air flow.
