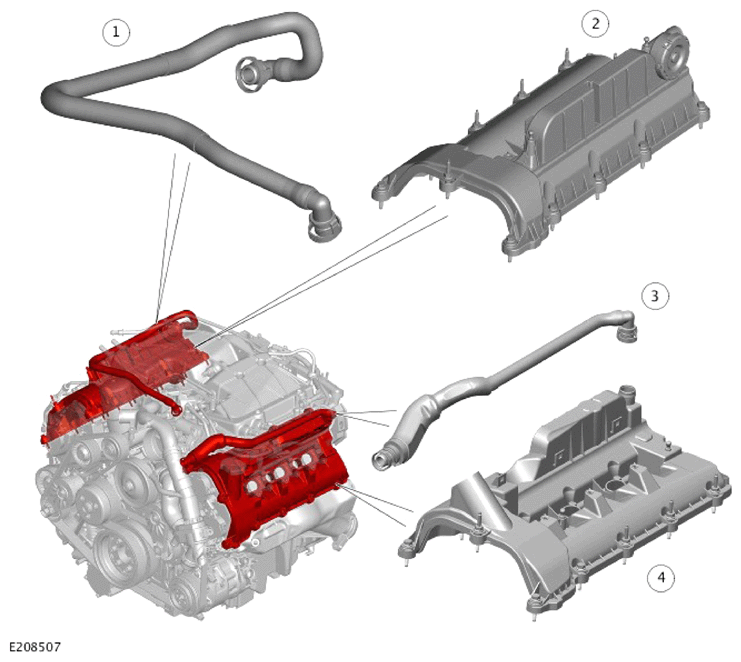

Component Location
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Part load breather pipe |
| 2 |
Part load breather - Camshaft cover bank 1 |
| 3 |
Full load breather pipe |
| 4 |
Full load breather - Camshaft cover bank 2 |
