Exhaust System: Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
CAUTION: Make sure the exhaust system is supported at all times.

NOTE: Remove and discard the exhaust clamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release and remove the exhaust to catalytic converter clamp bolt.
- The exhaust clamp is spot welded into position and will require removal with the use of a grinder or a drill.
NOTE: If equipped.

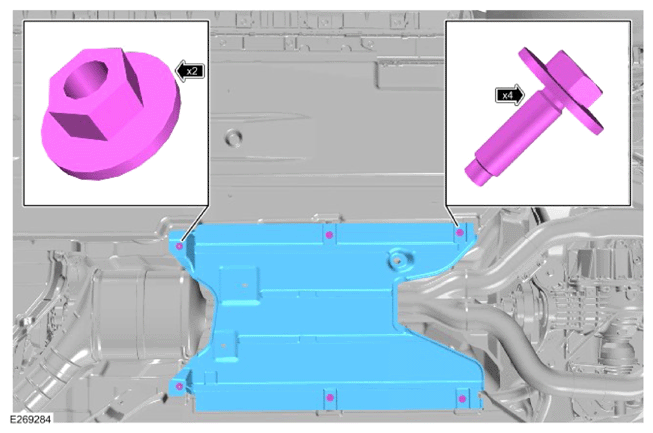

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the 4 bolts.
- Remove the center undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 nuts.
- Remove the 10 bolts.
- Remove the 18 fasteners.
- Remove the left and right undershield.
CAUTION: Make sure the exhaust system is supported at all times.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

With assistance, support the exhaust system and remove the 4 hanger brackets.
CAUTION: Make sure the exhaust system is supported at all times.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- With assistance from another technician, remove the exhaust system.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the exhaust hanger brackets.
- Remove the exhaust cross brace.
