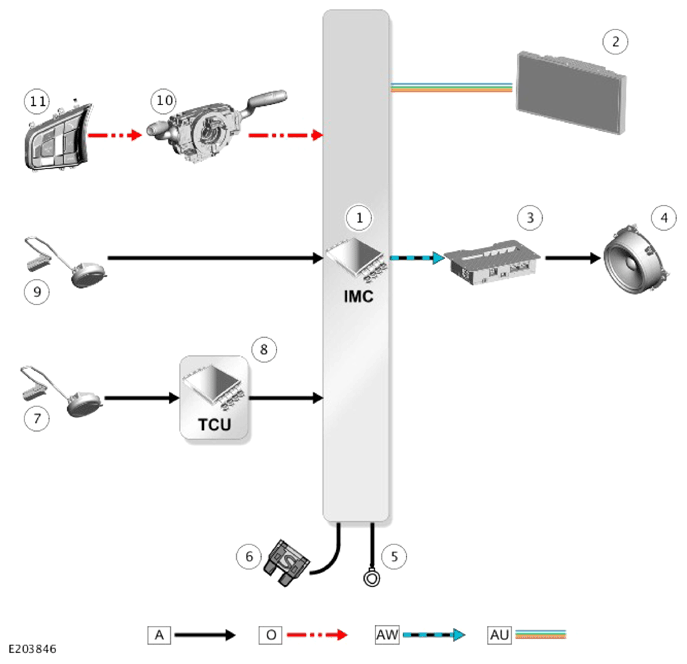

Control Diagram - Vehicles With INCONTROL Touch Pro Audio System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AW = BROADR-REACH® ETHERNET: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Touch Screen (TS) |
| 3 | Audio Amplifier Module (AAM) |
| 4 | Vehicle audio speakers |
| 5 | Ground |
| 6 | Power supply |
| 7 | Microphone - Vehicles with Emergency call (eCall) |
| 8 | Telematics Control Module (TCU) |
| 9 | Microphone - Vehicles without Emergency call (eCall) |
| 10 | Steering Wheel Module (SWM) |
| 11 | Left steering wheel switchpack |
