Wireless Headphones - If Equipped

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

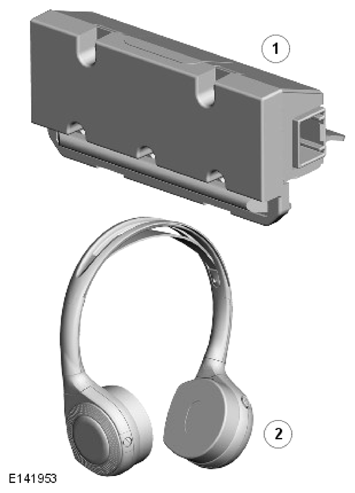

ITEM	DESCRIPTION
1	Headphone transmitter
2	Wireless headphone

Only vehicles fitted with a dual view Touch Screen (TS) are supplied with wireless headphones and headphone transmitter.

The headphone transmitter is located in the front overhead console assembly and replaces the sunglasses holder.

The headphone transmitter transmits audio output for reception by the wireless headphones. The headphone transmitter is connected to the Audio Amplifier Module (AAM) via a Low Voltage Differential Signal (LVDS) plug connector. Audio data is relayed to the headphone transmitter from the AAM via the LVDS line. The AAM also supplies the power and ground for the headphones transmitter. The audio signal is then passed on to the wireless headphones. The left side and the right side of the wireless headphone houses the infra-red receiver sensors which receive the transmitted signals from the headphone transmitter.

NOTE: Providing an audio source is directed to the headphone transmitter, faint red lights can be seen behind the smoked glass cover of the headphone transmitter. This can be useful for diagnosis to prove audio infra-red transmission is active.

The headphone system includes Dolby® surround sound when listening to the Digital Versatile Disc (DVD) source.

Two AAA batteries are located below a sliding cover. When inserting the batteries it is important that the battery polarity is observed as marked in the battery compartment.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	On/Off switch
2	Audio channel select switch
3	Volume control

The right side of the wireless headphone houses a volume control, a channel switch and a power 'ON' Light Emitting Diode (LED). The channel switch allows the user to select alternative audio channels (rear left/right, dual-view audio source) when active. The power 'ON' LED is illuminated when the on/off switch on the right side of the wireless headphone is operated. The LED will remain on and the wireless headphones powered until the switch is operated for a second time. If the wireless headphones have not received an infra-red signal from the headphones transmitter for several minutes, they will automatically switch off to prevent battery drain.
