Universal Serial Bus 2.0 Hub - If Equipped

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

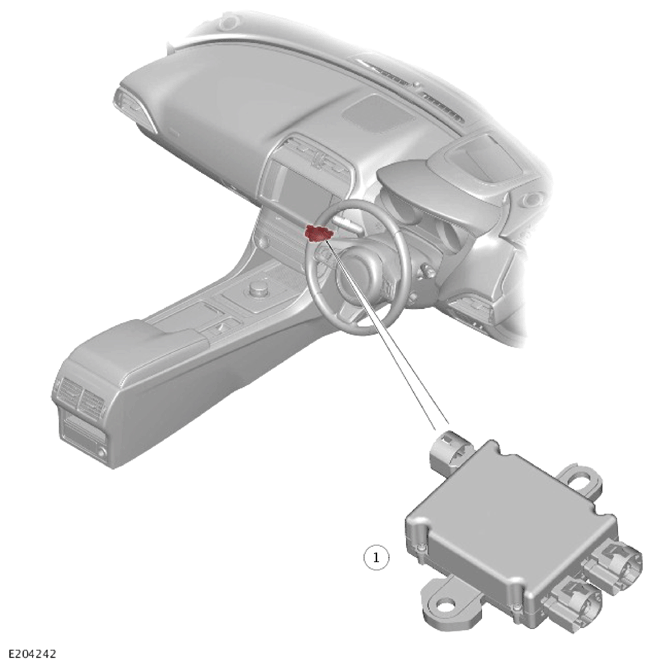

G14009009Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Universal Serial Bus (USB) 2.0 hub

The Universal Serial Bus (USB) 2.0 hub is located in the instrument panel behind the Integrated Control Panel (ICP).

The USB 2.0 hub operates as a splitter between the Infotainment Master Controller (IMC), digital disc player and electronic toll collection module on Japan market vehicles. The USB 2.0 hub functions as a repeater for USB 2.0 signals to boost the signal and reduce degradation. For additional information, refer to: AUDIO SYSTEM
