Touch Screen

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

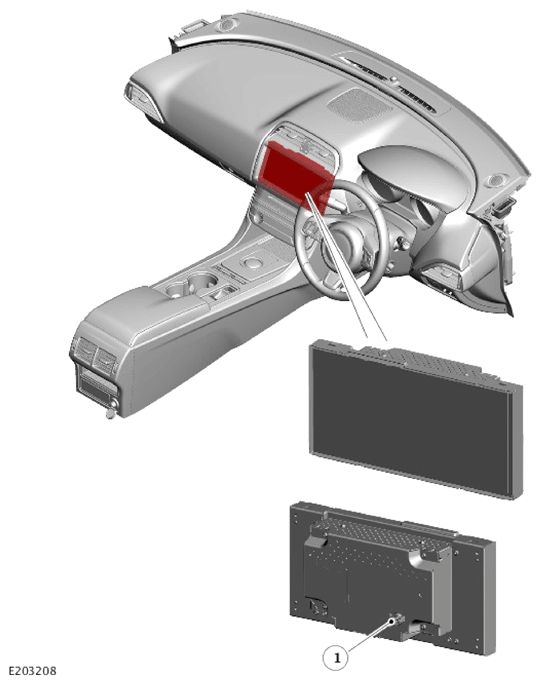

ITEM	DESCRIPTION
1	Automotive Pixel Link 2 (APIX2) connector

The Touch Screen (TS) is located in the center of the instrument panel.

Two variants of the Touch Screen (TS) are available for the InControl Touch Pro video system:

10.2 inch, 1280 x 542 resolution single view TS.
10.2 inch, 2560 x 542 resolution dual view TS (Not available for North American Specification (NAS) market vehicles).

The InControl Touch Pro TS does not have the switch packs on either side of the screen. The switches are replaced with soft key touch icons located in the screen image.

The TS is the primary user interface of the audio system and allows control of the infotainment system and other vehicle systems from a single point. The TS is connected to the Infotainment Master Controller (IMC) by a single Automotive Pixel Link 2 (APIX2) connection. The APIX2 connection provides power and ground connections and also data input and output. Power and ground is provided by the IMC.

The TS supports the following multi touch gestures:

Swipe
Flicking
Panning
Pinching
Zoom.

The TS also supports integrated voice interaction (17 languages, 3 of which support natural input: UK/US English, Chinese (Mandarin)).

Calibration of the TS using approved diagnostic equipment enables updates to be downloaded as new technology becomes available or any fault concerns require software updates.
