Control Diagram - INCONTROL Touch Pro With Surround Sound 17 Speaker System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

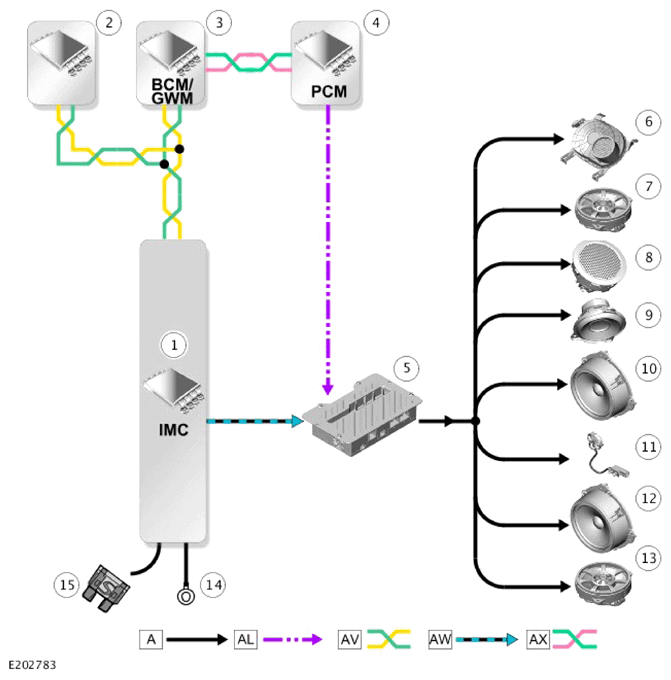

A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AW = BROADR-REACH® ETHERNET: AX = FLEXRAY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Audio inputs from other vehicle systems |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Powertrain Control Module (PCM) |
| 5 | Audio Amplifier Module (AAM) |
| 6 | Sub-woofer speaker |
| 7 | Instrument panel co-axial speaker |
| 8 | Front tweeter speaker (2 off) |
| 9 | Front mid-range speaker (2 off) |
| 10 | Front bass speaker (2 off) |
| 11 | Rear tweeter speaker (2 off) |
| 12 | Rear bass speaker (2 off) |
| 13 | Parcel shelf co-axial speaker (2 off) |
| 14 | Ground |
| 15 | Power supply |
