Control Diagram - INCONTROL Touch 6 Speaker System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

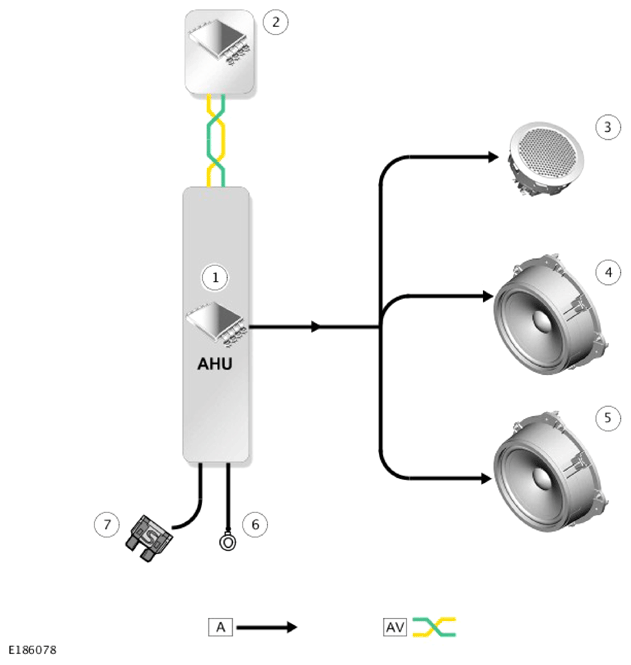

A = HARDWIRED: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
Audio Head Unit (AHU) |
| 2 |
Audio inputs from other vehicle systems |
| 3 |
Tweeter speaker (2 off) |
| 4 |
Front bass speaker (2 off) |
| 5 |
Rear bass speaker (2 off) |
| 6 |
Ground |
| 7 |
Power supply |
