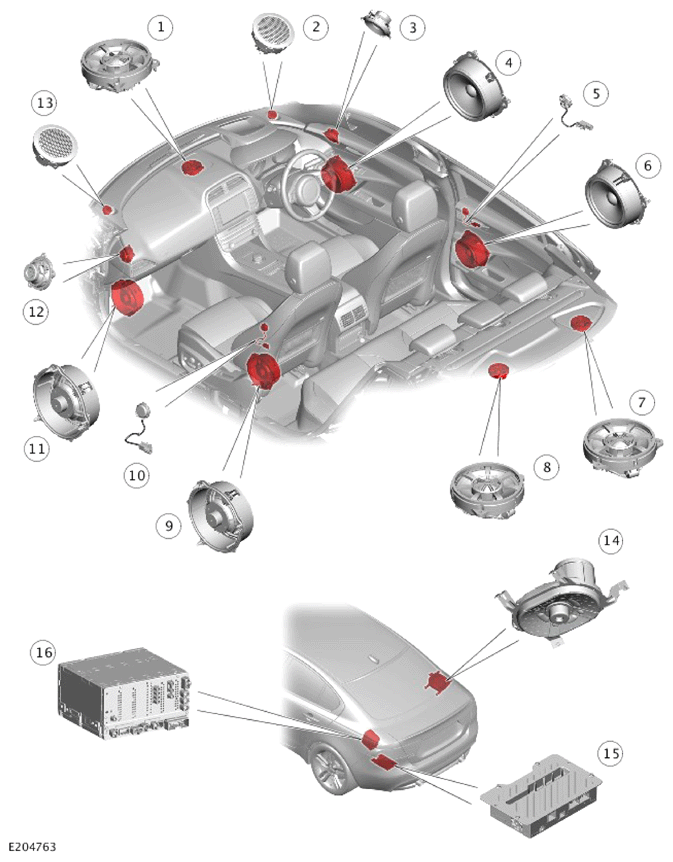

Component Location - INCONTROL Touch Pro With Surround Sound 17 Speaker System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument panel co-axial speaker |
| 2 | Front right tweeter speaker |
| 3 | Front right mid-range speaker |
| 4 | Front right bass speaker |
| 5 | Rear right tweeter speaker |
| 6 | Rear right bass speaker |
| 7 | Right parcel shelf co-axial speaker |
| 8 | Left parcel shelf co-axial speaker |
| 9 | Rear left bass speaker |
| 10 | Rear left tweeter speaker |
| 11 | Front left bass speaker |
| 12 | Front left mid-range speaker |
| 13 | Front left tweeter speaker |
| 14 | Sub-woofer speaker |
| 15 | Audio Amplifier Module (AAM) |
| 16 | Infotainment Master Controller (IMC) |
