Left Steering Wheel SWITCHPACK

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

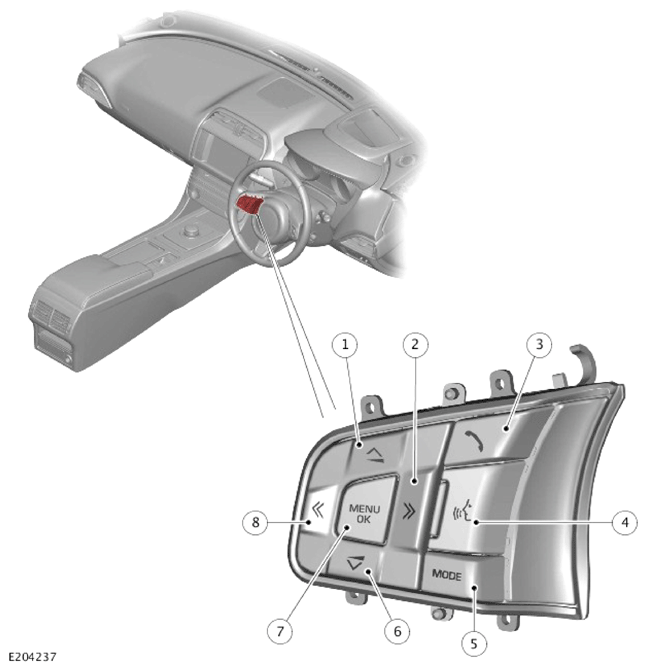

ITEM	DESCRIPTION
1	Volume increase switch
2	Seek, next radio preset, next track, scroll up telephone list switch (On vehicles with InControl Touch Pro only)
3	Telephone answer/end call switch
4	Voice control switch
5	Mode switch
6	Volume decrease switch
7	Menu/OK switch - Instrument Cluster (IC) menu control
8	Seek, previous radio preset, previous track, scroll down telephone list switch (On vehicles with InControl Touch Pro only)

The left steering wheel switchpack is located on the left side of the steering wheel.

Depending on vehicle specification, the left steering wheel switchpack is connected to the following:

The Audio Head Unit (AHU) on vehicles with InContol Touch audio system
The Infotainment Master Controller (IMC) on vehicles with InControl Touch Pro audio system.

The switches are a resistive ladder type which applies a different voltage to the switchpack. The left steering wheel switchpack converts the voltage received from the switches into a Local Interconnect Network (LIN) bus message. The LIN bus message is passed to the AHU or the IMC via the Steering Wheel Module (SWM).

The left steering wheel switchpack controls the following telephone switch functions:

Telephone answer/end call switch is used by the driver to answer an incoming call or to cancel a call that is in progress.
Mode - Press repeatedly to scroll through all audio/video sources.
» Short press up:
- To select the next radio preset
- To select the next track on chosen audio source.
- InControl Touch Pro Systems only - When telephone is in use, press to scroll down lists of calls entries.
«Short press down:
- To select the previous radio preset
- To select the previous track or start of current track on chosen audio source.
- InControl Touch Pro Systems only - When telephone is in use, press to scroll down lists of calls entries.
With radio manual seek mode activated, further short presses will change the frequency in single increments. A further long press will scan forwards through the current wave band until the button is released.
» Long press up:
- To auto seek up the frequency to the next radio station.
« Long press down:

To auto seek down the frequency to the next radio station.

Volume increase for any audio source
Volume decrease for any audio source.

NOTE: The above selections using the left steering wheel switchpack control selections displayed in the Instrument Cluster (IC) message center.

The MENU/OK switch is for use with the instrument cluster menu. For additional information, Refer to: INSTRUMENT CLUSTER

For further details on the audio switches refer to Audio system. For additional information, refer to: AUDIO SYSTEM

For further details on the voice switch refer to Voice Control. For additional information, Refer to: VOICE CONTROL (G2196500)
