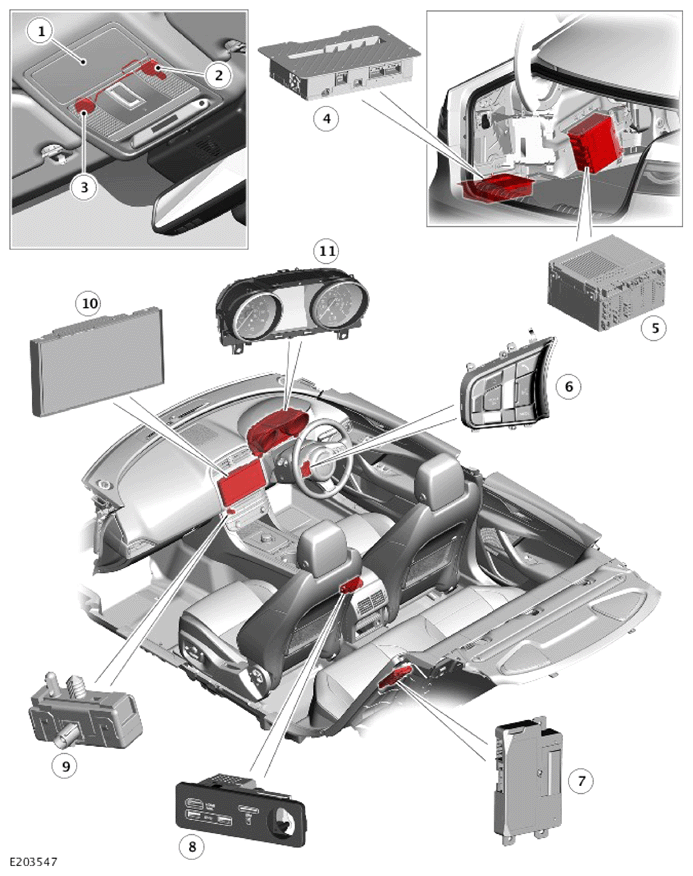

Component Location - Vehicles With INCONTROL Touch Pro Audio System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Overhead console |
| 2 | Microphone - Right Hand Drive (RHD) vehicles |
| 3 | Microphone - Left Hand Drive (LHD) vehicles |
| 4 | Audio Amplifier Module (AAM) |
| 5 | Infotainment Master Controller (IMC) |
| 6 | Left steering wheel switchpack |
| 7 | Telematics Control Module (TCU) |
| 8 | Portable media interface panel |
| 9 | Bluetooth®/WiFi antenna |
| 10 | Touch Screen (TS) |
| 11 | Instrument Cluster (IC) |
