Universal Serial Bus 3.0 Signal Booster - INCONTROL Touch Pro Systems Only
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

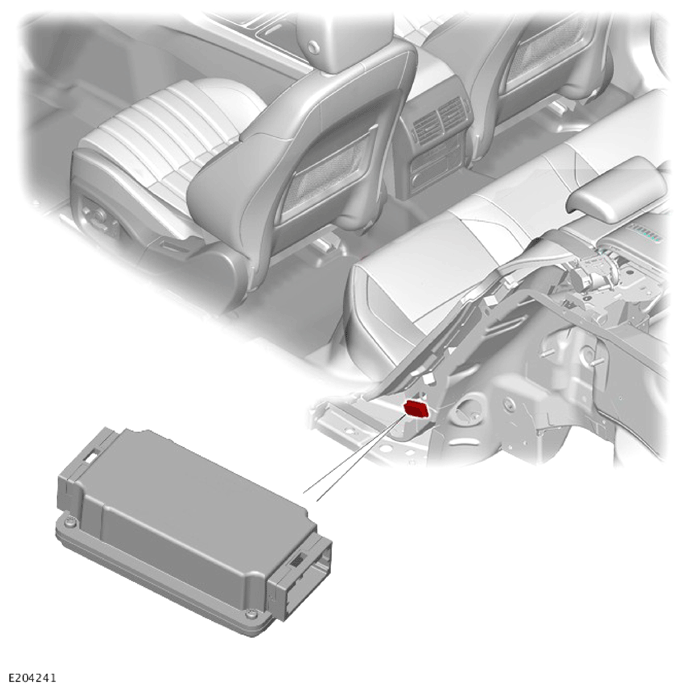

The Universal Serial Bus (USB) 3.0 signal booster is located on the left side of the rear seat cushion, behind the seat bolster trim.
The USB 3.0 signal booster provides data transmission speeds which are ten times faster than USB 2.0 (480 Mbps). The USB 3.0 signal booster significantly reduces the time required for data transmission, reduces power consumption, and is backwards compatible with USB 2.0.
To provide greater data transmission distance, without signal degradation, a USB 3.0 signal booster is fitted in the data transmission line. The signal booster essentially 'amplifies' the signals transmitted between the portable media interface panel USB sockets and the Infotainment Master Controller (IMC).
