Touch Screen
Touch Screen - InControl Touch Systems

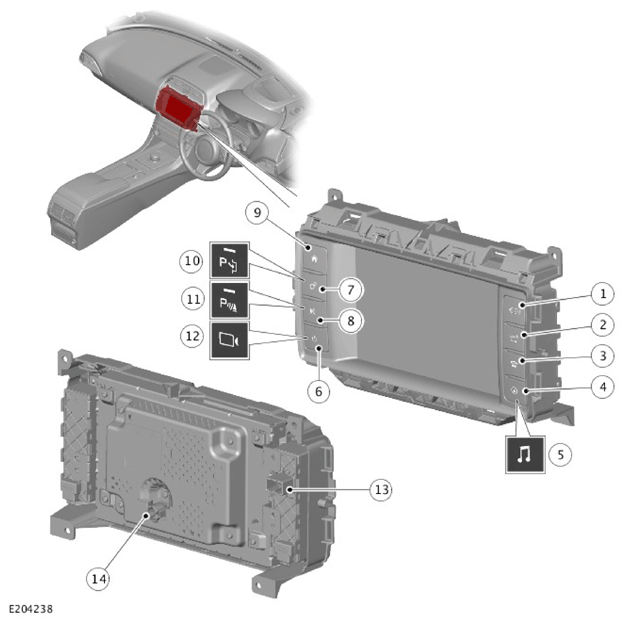

| ITEM | DESCRIPTION |
|---|---|
| 1 | 'Mode' switch |
| 2 | 'Media system' switch |
| 3 | 'Telephone system' switch |
| 4 | 'Navigation' switch |
| 5 | 'Audio settings' switch |
| 6 | Infotainment system On/Off switch |
| 7 | Audio mute switch |
| 8 | 'General settings' switch |
| 9 | 'Home menu' switch |
| 10 | 'Park assist' switch |
| 11 | 'Front parking aid' On/Off switch - If equipped |
| 12 | 'Camera' switch |
| 13 | Connector - Touch Screen (TS) switchpack |
| 14 | Automotive Pixel Link 2 (APIX2) connector |
The 8 inch 800 X 480 resolution, single view Touch Screen (TS) is located in the center of the instrument panel. The TS comprises an 8 inch color, touch sensitive display, with a TS switchpack located on either side.
The TS switchpack differs depending on system specification. For example, if parking aid or navigation is specified on the vehicle, these switches will replace 'Audio Settings' or 'Mute' functions respectively. The functions can still be accessed via the home menu using the TS.
The TS is the primary user interface of the audio system and allows control of the infotainment system and other vehicle systems from a single point. The TS is connected to the Audio Head Unit (AHU) by a single 6 pin connector for power, ground and Automotive Pixel Link 2 (APIX2) connections. The APIX2 connection provides power and ground connections and also data input and output. Power and ground is provided by the AHU.
The TS switchpack comprises eight switches. The function of the switches can differ dependent on the infotainment system installed in the vehicle.
The TS switchpack has a single 12 pin connector which provides electrical connections to and from the switches. The connector provides switch power supplies, switch illumination supplies and output from the switches via a resistive ladder. The outputs from the parking aid and park assist switches are passed directly to the Parking Aid Control Module (PACM).
