Touch Screen - INCONTROL Touch Pro Systems
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

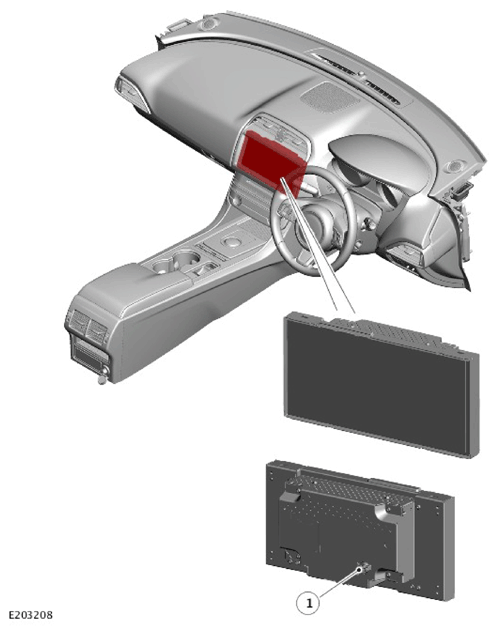

| ITEM | DESCRIPTION |
|---|---|
| 1 | Automotive Pixel Link 2 (APIX2) connector |
Two variants of the Touch Screen (TS) are available for the InControl Touch Pro systems:
- 10.2 inch, 1280 x 542 resolution single view
- 10.2 inch, 2560 x 542 resolution dual view (Not available for North American Specification (NAS) markets).
The InControl Touch Pro TS does not have the switch packs on either side of the screen. The switches are replaced with soft key touch icons located in the screen image.
The TS is the primary user interface of the audio system and allows control of the infotainment system and other vehicle systems from a single point. The TS is connected to the Infotainment Master Controller (IMC) by a single Automotive Pixel Link 2 (APIX2) connection. The connector incorporates the APIX2 connection and also power and ground connections. Power and ground is provided by the IMC.
The TS supports multi touch gestures (Swipe - Flicking - Panning - Pinching - Zoom).
