Left Steering Wheel SWITCHPACK

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

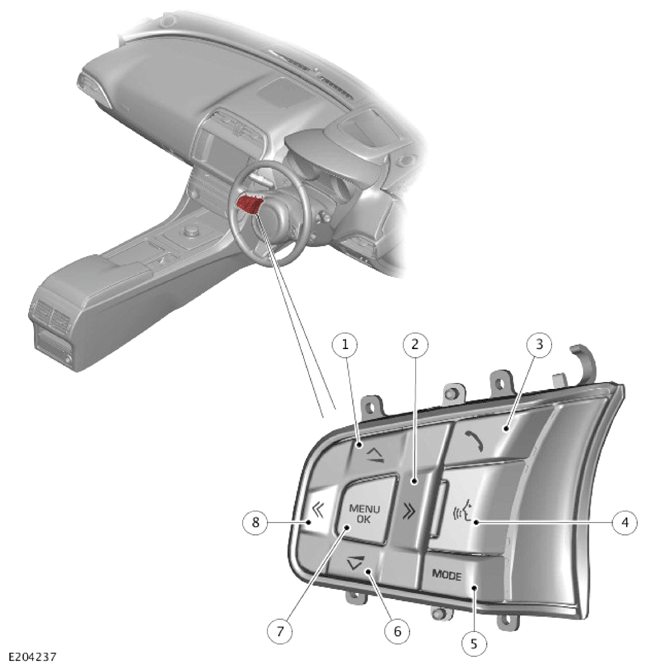

ITEM	DESCRIPTION
1	Volume increase switch
2	Seek, next radio preset, next track, scroll up telephone list switch
3	Telephone answer/end call switch
4	Voice control switch
5	Mode switch
6	Volume decrease switch
7	Menu/OK switch (Instrument Cluster (IC) menu control)
8	Seek, previous radio preset, previous track, scroll down telephone list switch

The left steering wheel switchpack is located on the left side of the steering wheel.

Depending on vehicle specification, the left steering wheel switchpack is connected via a Local Interconnect Network (LIN) bus to the following:

The Audio Head Unit (AHU) on vehicles with InControl Touch audio system
The Infotainment Master Controller (IMC) on vehicles with InControl Touch Pro audio system.

The switches are a resistive ladder type which applies a different voltage via LIN bus to the AHU or the IMC in response to different switches being operated.

The left steering wheel switchpack controls the following switch functions:

MODE - Press repeatedly to scroll through all audio/video sources
» Short press up:
- To select the next radio preset
- To select the next track on chosen audio source
- When telephone is in use, press to scroll up lists of calls or phonebook entries (InControl Touch Pro systems only).
« Short press down:
- To select the previous radio preset
- To select the previous track or start of current track on chosen audio source
- When telephone is in use, press to scroll down lists of calls or phonebook entries (InControl Touch Pro systems only).
With radio manual seek mode activated, further short presses will change the frequency in single increments. A further long press will scan forwards through the current waveband until the switch is released.
» Long press up:
- To auto seek up the frequency to the next radio station.
« Long press down:

To auto seek down the frequency to the next radio station.

Volume increase for any audio source.
Volume decrease for any audio source.
Telephone answer/end call switch is used by the driver to answer an incoming call or to cancel a call that is in progress.

NOTE: The switches to scroll up and down lists of calls or phonebook entries are only applicable to vehicles with the InControl Touch Pro systems.

The Menu/OK switch is for use with the Instrument Cluster (IC) menu. For additional information, Refer to: INSTRUMENT CLUSTER

For further details on the telephone switch refer to Mobile Phone. For additional information, refer to: MOBILE PHONE

For further details on the voice switch refer to Voice Control. For additional information, refer to: VOICE CONTROL
