Audio Head Unit - INCONTROL Touch Systems

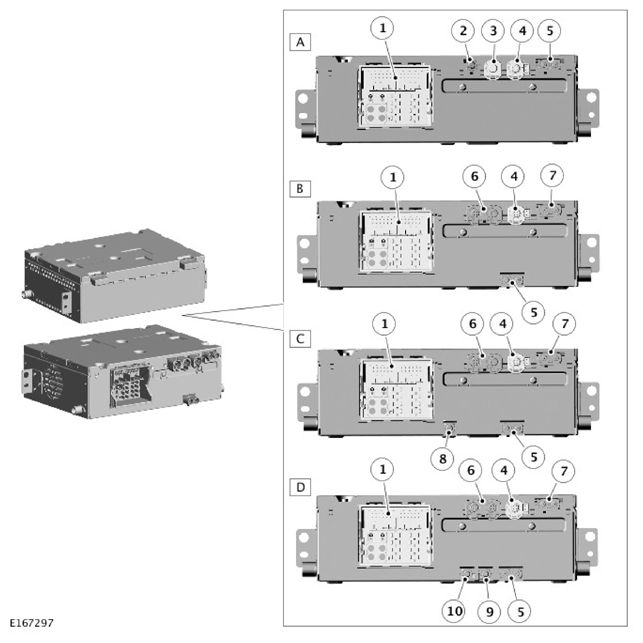

| ITEM | DESCRIPTION |
|---|---|
| A | Level 'B' Audio Head Unit (AHU) - All markets |
| B | Level 'C' Audio Head Unit (AHU) with navigation - All markets |
| C | Level 'C' - Not used |
| D | Level 'C' Audio Head Unit (AHU) with navigation and Digital radio - European markets only |
| 1 | Connector - 40 pin |
| 2 | Connector - Camera |
| 3 | Connector - Universal Serial Bus (USB) |
| 4 | Connector - Touch Screen (TS) - Automotive Pixel Link 2 (APIX2) |
| 5 | Connector - Amplitude Modulation (AM)/Frequency Modulation (FM) antenna input |
| 6 | Connector - Universal Serial Bus (USB) |
| 7 | Connector - Global Positioning System (GPS) and camera |
| 8 | Connector - Not used |
| 9 | Connector- Digital radio (Band-3) - European markets only |
| 10 | Connector - Digital radio (European markets only) |
The Audio Head Unit (AHU) is located in the center of the instrument panel, below the Touch Screen (TS). The AHU is the main infotainment controller for the InControl Touch audio system.
Four levels of AHU are available depending on market and vehicle specification:
| FEATURE | AUDIO HEAD UNIT LEVEL B - ALL MARKETS | AUDIO HEAD UNIT LEVEL C - ALL OTHER MARKETS | AUDIO HEAD UNIT LEVEL C - EUROPE | AUDIO HEAD UNIT LEVEL C - NORTH AMERICAN SPECIFICATION (NAS) |
|---|---|---|---|---|
| Amplitude Modulation (AM)/Frequency Modulation (FM) radio diversity | Yes | Yes | Yes | Yes |
| Digital radio | No | Yes | Yes | Yes |
| 4-channel internal amplifier | Yes | No | No | No |
| 12-channel external amplifier | No | Yes | Yes | Yes |
| Bluetooth® phone system | Yes | Yes | Yes | Yes |
| Bluetooth® audio streaming | Yes | Yes | Yes | Yes |
| Live phonebook access | Yes | Yes | Yes | Yes |
| Voice recognition | No | Yes | Yes | Yes |
| SMS Text display | No | Yes | Yes | Yes |
| Secure Digital (SD) Card - Global Navigation Satellite System (GNSS) | No | Yes | Yes | Yes |
| Telematics - Emergency call (eCall)/Breakdown call (bCall) Mute only | Yes | Yes | Yes | Yes |
| Telematics - WiFi/Internet | No | Yes | Yes | Yes |
| 3.5 mm auxiliary input | Yes | Yes | Yes | Yes |
| Universal Serial bus (USB) Input - Media player/Audio/Video/iPod® Audio/USB Charging | Yes - 0.5 A charging | Yes - 2.1 A charging | Yes - 2.1 A charging | Yes - 2.1 A charging |
The AHU receives a 12 V fused power supply from the Battery Junction Box (BJB) and the Quiescent Current Control Module (QCCM).
High Speed (HS) Controller Area Network (CAN) comfort system bus connections provide communication with other system control modules. For example inputs from the Parking Assist Control Module (PACM) for sound generation and display on the TS.
The AHU uses Automotive Pixel Link 2 (APIX2) which is a new protocol for video output to the Touch Screen (TS). APIX2 is a high speed digital serial link capable of communicating up to 3 Gigabit/second of digital video data. The serial link can support simultaneous video, audio and data transmission from the AHU and the TS.
