Audio Amplifier Module
Systems with an external Audio Amplifier Module (AAM) have the AAM located in the left side of the luggage compartment. The AAM is a secured with a bracket to the vehicle floorpan.
The audio systems have three AAM options, dependent on level of audio system fitted:
- InControl Touch 11 speaker 380 W audio system with external 12 channel AAM.
- InControl Touch Pro 11 speaker 380 W audio system with external 12 channel AAM.
- InControl Touch Pro with surround sound 17 speaker 825 W audio system with external 16 channel AAM.

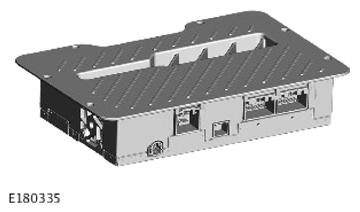

Audio Amplifier Module - InControl Touch 11 Speaker System
The InControl Touch 11 speaker system uses an Audio Amplifier Module (AAM) specific to the system. The AAM has a power output of 380 W.
The AAM processes signals from other system modules for output via the vehicle speakers.
The AAM has three connectors which provide for the following:
- Power supply and ground connections
- Hardwired connections to the vehicle speakers
- High Speed (HS) Controller Area Network (CAN) infotainment systems bus between the Audio Head Unit (AHU) and the AAM.
Power supplies are received from the Rear Junction Box (RJB).

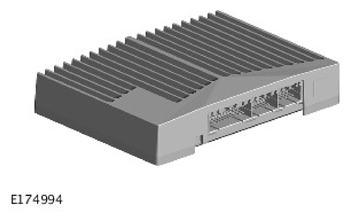

Audio Amplifier Module - InControl Touch Pro 11 Speaker System
The InControl Touch Pro 11 speaker system uses an AAM specific to the system. The AAM has a power output of 380 W.
The AAM has five connectors which provide for the following:
- Power supply and ground connections
- Hardwired connections to vehicle speakers
- Output to headphone transmitter
- BroadR-Reach® ethernet connection between the Infotainment Master Controller (IMC) and the AAM.
Power supply is received from the RJB.

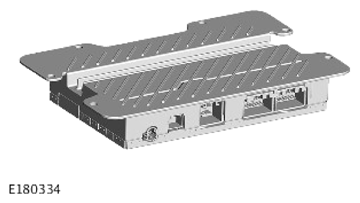

InControl Touch Pro With Surround Sound 17 Speaker System
The InControl Touch Pro with surround sound 17 speaker system uses an AAM specific to the system. The AAM has a power output of 825 W.
The AAM has five connectors which provide for the following:
- Power supply and ground connections
- Hardwired connections to vehicle speakers
- Output to headphone transmitter
- BroadR-Reach® ethernet connection between the IMC and the AAM.
Power supply is received from the RJB.
