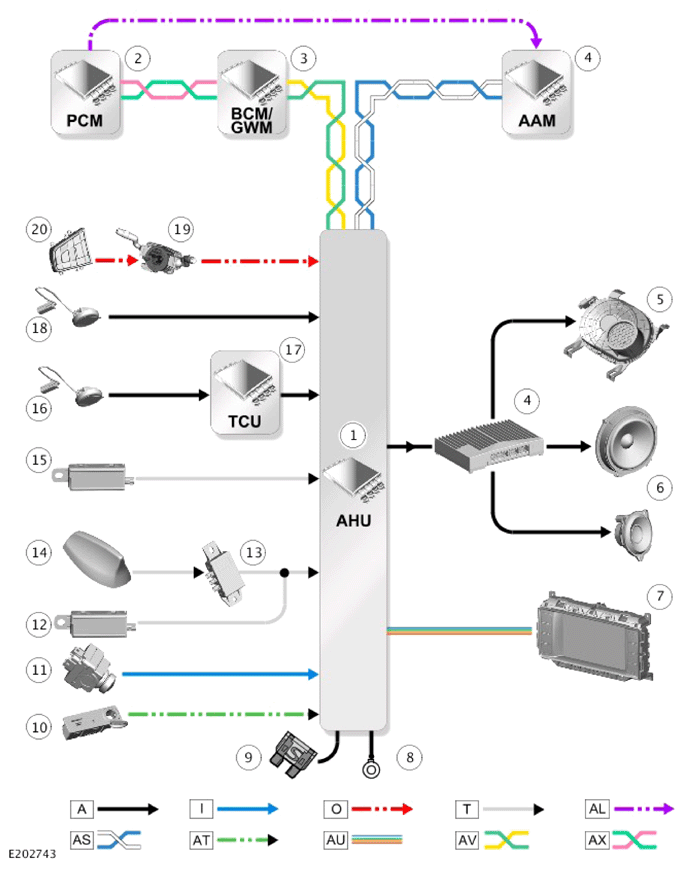

Control Diagram - INCONTROL Touch 11 Speaker System
A = HARDWIRED: I = COMPOSITE VIDEO BASEBAND SIGNAL (CVBS): O = LOCAL INTERCONNECT NETWORK (LIN) BUS: T = CO-AXIAL: AL = PULSE WIDTH MODULATION (PWM): AS = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) INFOTAINMENT SYSTEMS BUS: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Head Unit (AHU) |
| 2 | Powertrain Control Module (PCM) - Engine speed signal - Only on vehicles with active sound design |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly - Engine torque, power mode and JaguarDrive mode signals |
| 4 | Audio Amplifier Module (AAM) |
| 5 | Sub-woofer speaker |
| 6 | Vehicle speakers (10 off) |
| 7 | Touch Screen (TS) |
| 8 | Ground |
| 9 | Power supply |
| 10 | Portable audio interface panel |
| 11 | Rear View Camera (RVC) - If equipped |
| 12 | Frequency Modulation (FM)/Digital radio (Band-3) antenna amplifier |
| 13 | Global Positioning System (GPS) signal splitter - If equipped |
| 14 | Roof pod |
| 15 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 16 | Microphone - Vehicles with telematics system |
| 17 | Telematics Control Module (TCU) - If equipped |
| 18 | Microphone - Vehicles without telematics system |
| 19 | Steering Wheel Module (SWM) |
| 20 | Left steering wheel switchpack |

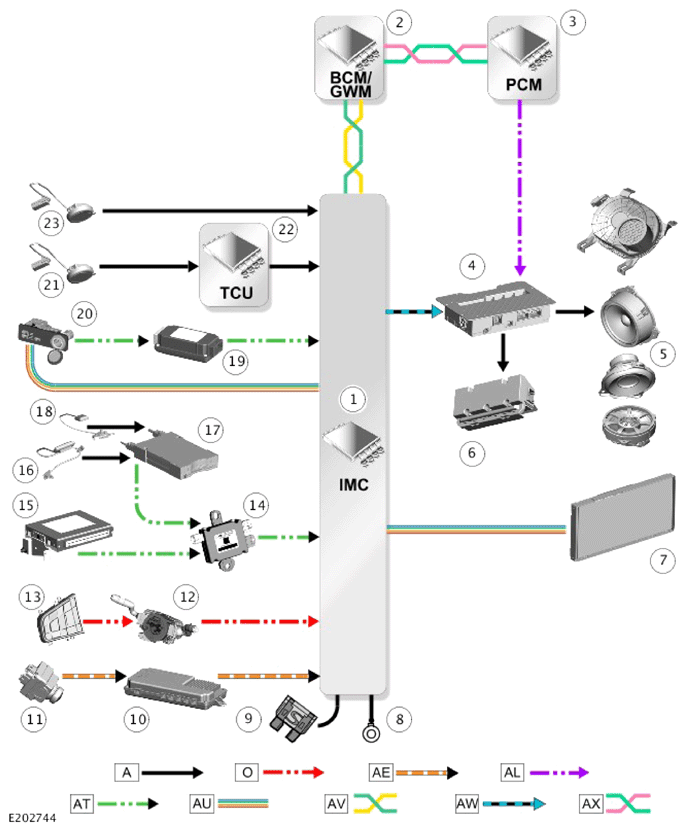

CONTROL DIAGRAM - INCONTROL TOUCH PRO 11 SPEAKER AND INCONTROL TOUCH PRO WITH SURROUND SOUND 17 SPEAKER SYSTEMS - 1 OF 2
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AE = LOW-VOLTAGE DIFFERENTIAL SIGNALLING (LVDS): AL = PULSE WIDTH MODULATION (PWM): AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AW = BROADR-REACH® ETHERNET: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Powertrain Control Module (PCM) |
| 4 | Audio Amplifier Module (AAM) |
| 5 | Vehicle speakers |
| 6 | Headphone transmitter - If equipped |
| 7 | Touch Screen (TS) |
| 8 | Ground |
| 9 | Power supply |
| 10 | Camera Control Module (CCM) |
| 11 | Rear View Camera (RVC) |
| 12 | Steering Wheel Module (SWM) |
| 13 | Left steering wheel switchpack |
| 14 | Universal Serial Bus (USB) 2.0 hub |
| 15 | Digital disc player |
| 16 | Vehicle Information and Communication System (VICS) beacon antenna (Japan only) |
| 17 | Electronic toll collection module (Japan only) |
| 18 | Electronic toll collection module antenna (Japan only) |
| 19 | Universal Serial Bus (USB) 3.0 signal booster |
| 20 | Portable media interface panel |
| 21 | Microphone - Vehicles with telematics system |
| 22 | Telematics Control Module (TCU) - If equipped |
| 23 | Microphone - Vehicles without telematics system |

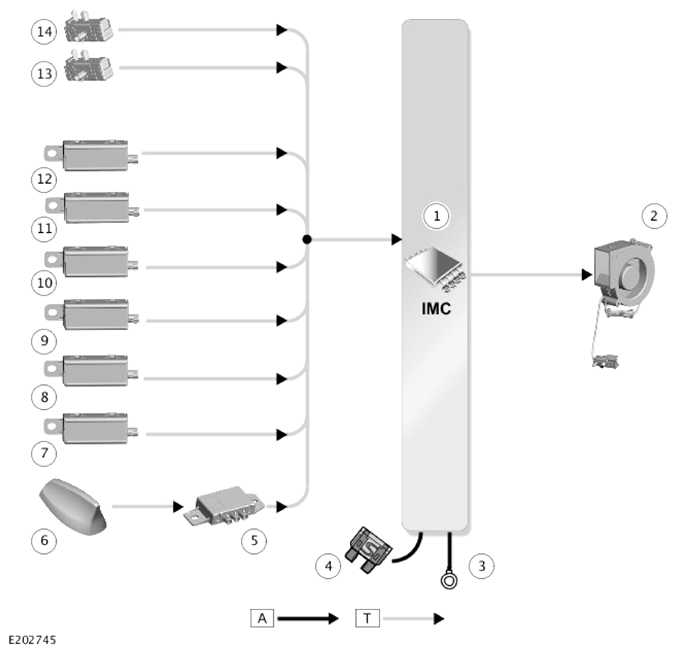

CONTROL DIAGRAM - INCONTROL TOUCH PRO 11 SPEAKER AND INCONTROL TOUCH PRO WITH SURROUND SOUND 17 SPEAKER SYSTEMS - 2 OF 2
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Infotainment Master Controller (IMC) cooling fan |
| 3 | Ground |
| 4 | Power supply |
| 5 | Global Positioning System (GPS) signal splitter |
| 6 | Roof pod - Global Positioning System (GPS) antenna/Global System for Mobile Communications (GSM) antenna/Satellite Digital Audio Radio Service (SDARS) antenna (North American Specification (NAS) only) |
| 7 | Digital radio (Band-3) antenna amplifier |
| 8 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 9 | Television (TV) antenna amplifier |
| 10 | Television (TV) antenna amplifier |
| 11 | Television (TV) antenna amplifier |
| 12 | Frequency Modulation (FM)2/Digital radio (Band-3)/Vehicle Information and Communication System (VICS) (Japan only) antenna amplifier |
| 13 | Right WiFi antenna |
| 14 | Left Bluetooth®/WiFi antenna |
