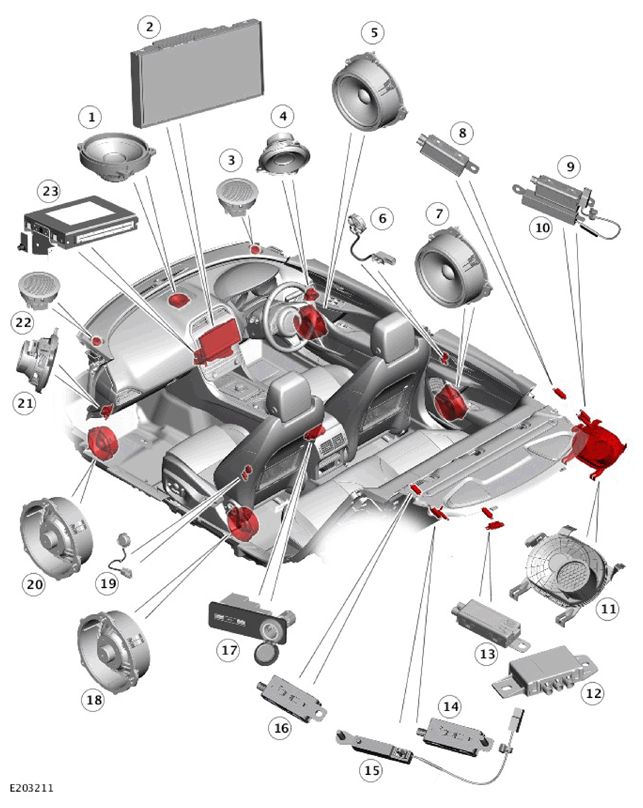

Component Location - INCONTROL Touch Pro 11 Speaker System - 1 Of 2
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Telematics speaker - If equipped |
| 2 | Touch Screen (TS) |
| 3 | Front right tweeter speaker |
| 4 | Front right mid-range speaker |
| 5 | Front right bass speaker |
| 6 | Rear right tweeter speaker |
| 7 | Rear right bass speaker |
| 8 | Television (TV) antenna amplifier |
| 9 | Frequency Modulation 2 (FM2)/Digital radio (Band-3)/Vehicle Information and Communication System (VICS) (Japan only) antenna amplifier |
| 10 | Radio Frequency (RF) filter - Heated rear window positive (+) |
| 11 | Sub-woofer speaker |
| 12 | Global Positioning System (GPS) signal splitter |
| 13 | Television (TV)/Digital radio antenna amplifier |
| 14 | Television (TV) antenna amplifier |
| 15 | Radio Frequency (RF) filter - Heated rear window negative (-) |
| 16 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 17 | Portable media interface panel |
| 18 | Rear left bass speaker |
| 19 | Rear left tweeter speaker |
| 20 | Front left bass speaker |
| 21 | Front left mid-range speaker |
| 22 | Front left tweeter speaker |
| 23 | Digital disc player |
