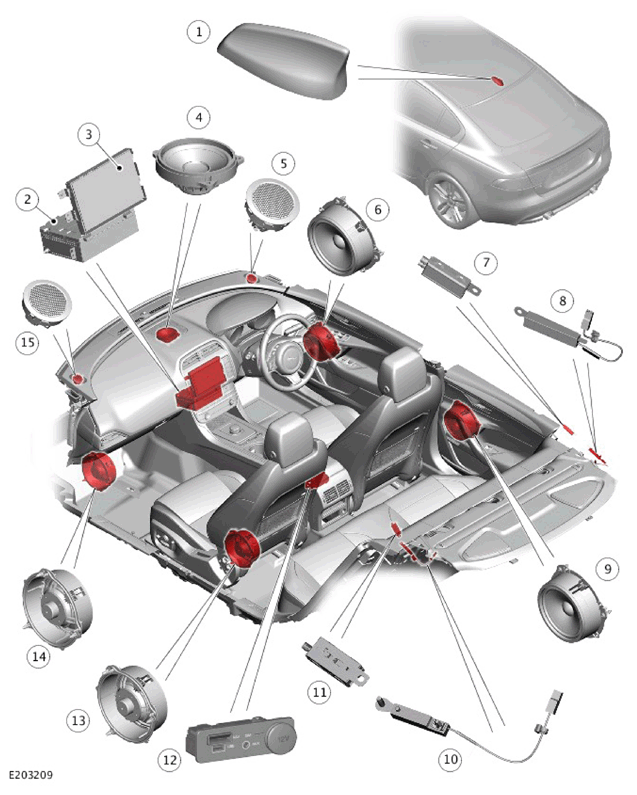

Component Location - INCONTROL Touch 6 Speaker System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Roof pod |
| 2 | Audio Head Unit (AHU) |
| 3 | Touch Screen (TS) |
| 4 | Telematics speaker - If equipped |
| 5 | Front right tweeter speaker |
| 6 | Front right bass speaker |
| 7 | Frequency Modulation 2 (FM2)/Digital radio (Band-3) antenna amplifier |
| 8 | Radio Frequency (RF) filter - Heated rear window positive (+) |
| 9 | Rear right bass speaker |
| 10 | Radio Frequency (RF) filter - Heated rear window negative (-) |
| 11 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 12 | Portable audio interface panel |
| 13 | Rear left bass speaker |
| 14 | Front left bass speaker |
| 15 | Front left tweeter speaker |
