Control Diagram - INCONTROL Touch Pro Audio Systems
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: T = CO-AXIAL.

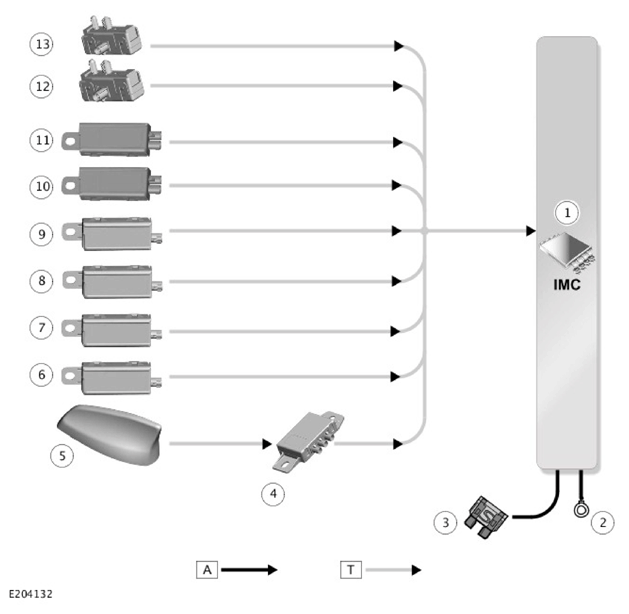

| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Ground |
| 3 | Power supply |
| 4 | Global Positioning System (GPS) signal splitter - Only on vehicles with telematics system and navigation system fitted |
| 5 | Roof pod - Global Positioning System (GPS) antenna/Global System for Mobile communications (GSM) antenna/Satellite Digital Audio Radio Service (SDARS) antenna (North American Specification (NAS) only) |
| 6 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 7 | Digital radio antenna amplifier |
| 8 | Frequency Modulation 2 (FM2)/Digital radio antenna amplifier/Vehicle Information and Communication System (VICS) (Japan only) |
| 9 | Television (TV) antenna (2 off) - If equipped |
| 10 | Dual Television (TV) antenna - If equipped |
| 11 | Frequency Modulation 2 (FM2)/Digital radio antenna amplifier |
| 12 | WiFi antenna |
| 13 | Bluetooth® antenna |
