Control Diagram - INCONTROL Touch Audio System

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

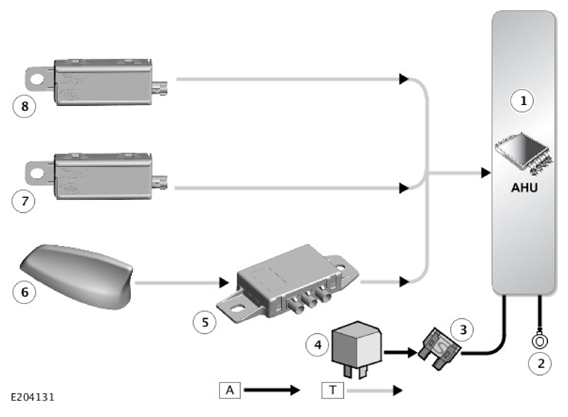

G11311034Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = HARDWIRED: T = CO-AXIAL.

ITEM DESCRIPTION
1 Audio Head Unit (AHU)
2 Ground
3 Relay - Located in Quiescent Current Control Module (QCCM)
4 Fuse - Located in QCCM
5 Global Positioning System (GPS) signal splitter - Only on vehicles with telematics and navigation systems
6 Roof pod
7 Frequency Modulation 2 (FM2)/Traffic Message Channel (TMC)/Digital radio antenna amplifier
8 Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier
