Component Location - INCONTROL Touch Pro Audio System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

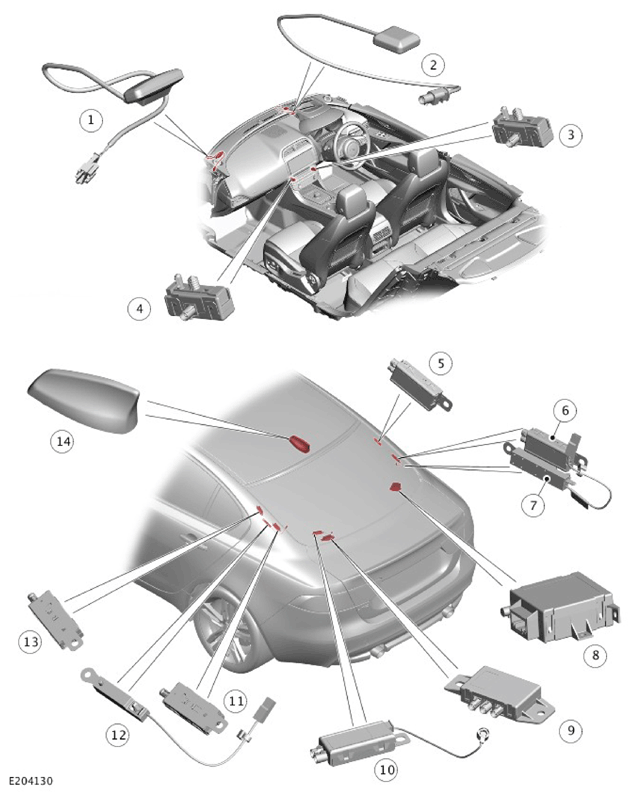

| ITEM | DESCRIPTION |
|---|---|
| 1 | Vehicle Information and Communication System (VICS) beacon antenna (Japan only) |
| 2 | Electronic toll collection module antenna (Japan only) |
| 3 | WiFi antenna |
| 4 | Bluetooth® antenna |
| 5 | Dual Television (TV) antenna amplifier |
| 6 | Frequency Modulation 2 (FM2)/Digital radio antenna amplifier/Vehicle Information and Communication System (VICS) (Japan only) |
| 7 | Right Radio Frequency (RF) filter - Heated rear window positive (+) |
| 8 | Fuel Fired Booster Heater (FFBH) receiver - If equipped |
| 9 | Global Positioning System (GPS) signal splitter |
| 10 | TV/Digital radio antenna amplifier |
| 11 | Left TV antenna amplifier |
| 12 | Left Radio Frequency (RF) filter - Heated rear window negative (-) |
| 13 | Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier |
| 14 | Roof pod - Global Navigation Satellite System (GNSS), Global System for Mobile communications (GSM), Satellite Digital Audio Radio Service (SDARS) (North American Specification (NAS) only), external WiFi |
