Component Location - INCONTROL Touch Audio System

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

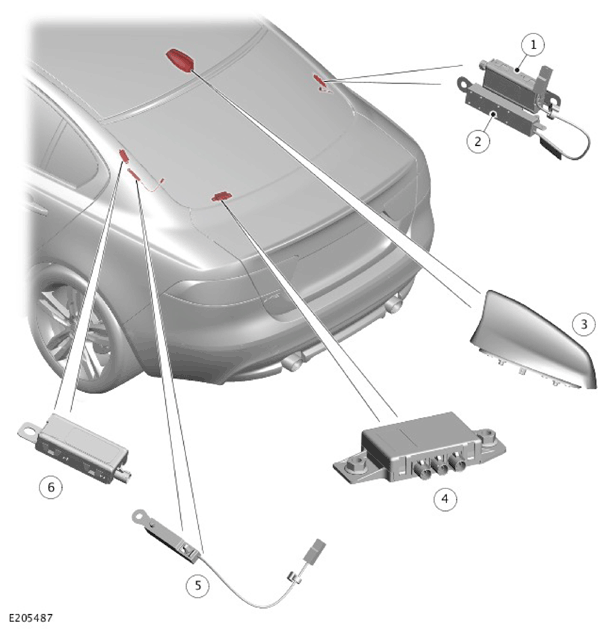

G11311032Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Frequency Modulation 2 (FM2)/Traffic Message Channel (TMC)/Digital radio antenna amplifier
2 Right Radio Frequency (RF) filter - Heated rear window positive (+)
3 Roof pod
4 Global Positioning System (GPS) signal splitter - Only on vehicles with telematics system
5 Left Radio Frequency (RF) filter - Heated rear window negative (-)
6 Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier
