Emergency Call And Breakdown Call Switches

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

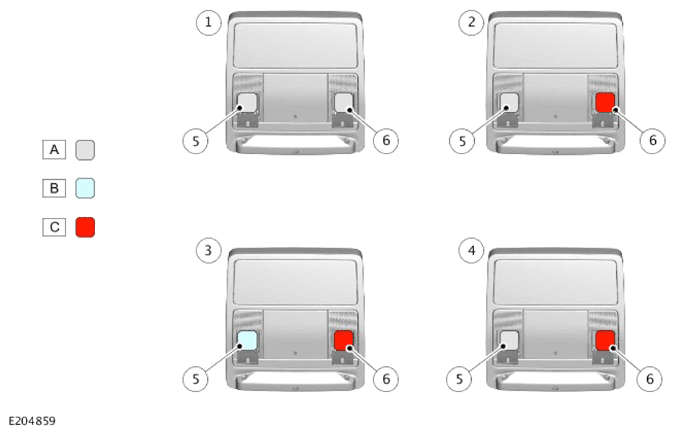

ITEM	DESCRIPTION
A	Light Emitting Diode (LED) indicator off
B	Breakdown call (bCall) - LED indicator illuminated - Blue color
C	Emergency call (eCall) - LED indicator illuminated - Red color
1	State 1
2	State 2
3	State 3
4	State 4
5	Breakdown call (bCall) switch
6	Emergency call (eCall) switch

Light Emitting Diode (LED) indicators, integrated into the Emergency call (eCall) and Breakdown call (bCall) switches, provide switch illumination and indicate the status of the call operation.

The LED indicator sequences of the eCall and bCall switches can identify the current activation status of the following services:

'InControl Protect'
'InControl Remote' mobile phone application
'Secure Tracker' (where applicable)
WiFi Hotspot.

The TCU controls the output to the telematics speaker located in the top of the instrument panel.

The LED indicator sequences denote the activation status:

State 1

The Controller Area Network (CAN) bus is awake or the engine is running but neither of the LED lamps are illuminated.

The vehicle has not gone through a Pre-Delivery Inspection (PDI).

InControl Protect, InControl Remote mobile phone application and 'Secure Tracker' cannot be activated until the PDI is complete.

State 2

The bCall switch is not illuminated.

The HS CAN bus is awake or the engine is running.

The eCall switch is illuminated in red color.

The vehicle PDI is completed, InControl Protect, InControl Remote mobile phone application and 'Secure Tracker' are ready for activation.

State 3

NOTE: For China only, after a PDI the e-Call switch will not be illuminated until activation is completed.

The HS CAN bus is awake or the engine is running.

The eCall switch is illuminated in red color, the bCall switch is illuminated in blue color.

InControl Protect, InControl Remote mobile phone application and 'Secure Tracker' activation completed and is linked to a user account.

State 4

NOTE: See InControl personal study module for activation details.

The HS CAN bus is awake or the engine is running.

The eCall switch is illuminated in red color.

The b-Call switch is not illuminated (post activation).

The user account has been de-registered from the vehicle. The account can now be connected to a different user.
