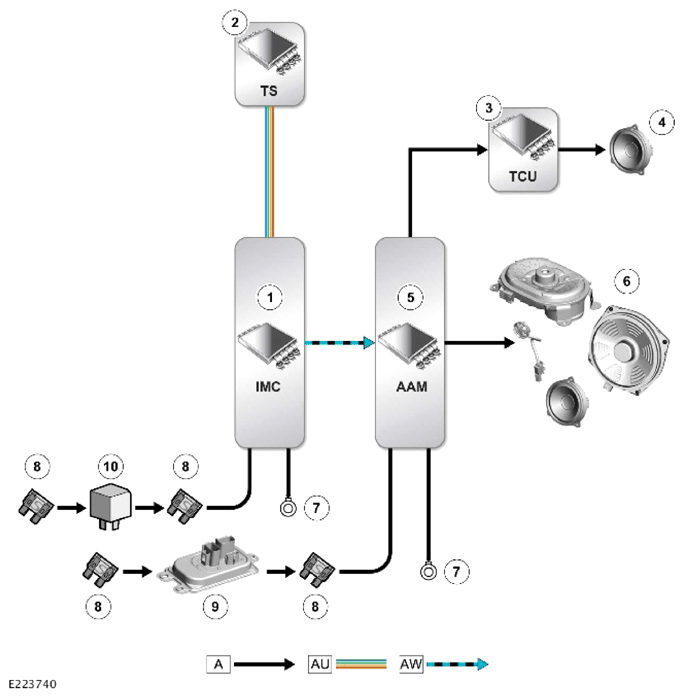

Control Diagram - 1 Of 1
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AW = BROADR-REACH® ETHERNET.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Touchscreen (TS) |
| 3 | Telematics Control Module (TCU) |
| 4 | Telematics speaker |
| 5 | Audio amplifier Module (AAM) |
| 6 | Vehicle speakers |
| 7 | Ground |
| 8 | Fused power supply |
| 9 | Voltage Quality Module (VQM) |
| 10 | Quiescent current relay |
