Component Location - Vehicles With INCONTROL Touch Navigation System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

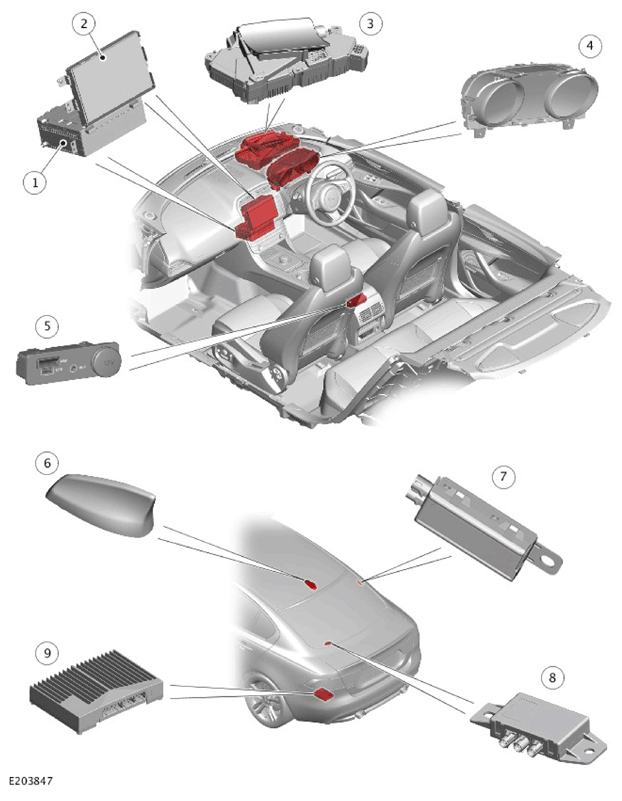

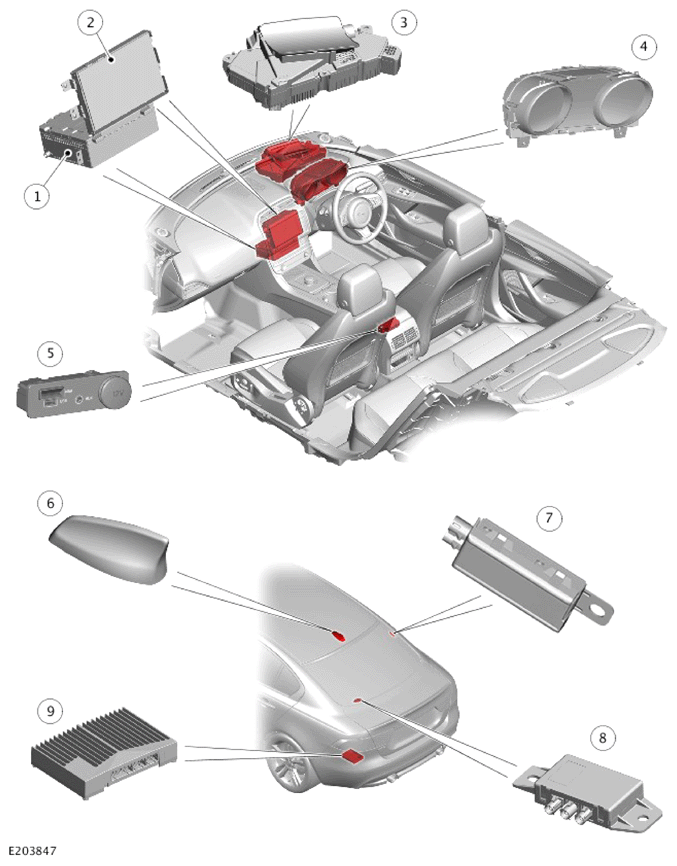

| ITEM | DESCRIPTION |
|---|---|
| 1 | Audio Head Unit (AHU) |
| 2 | Touch Screen (TS) |
| 3 | Head Up Display (HUD) - If equipped |
| 4 | Instrument Cluster (IC) |
| 5 | Portable audio interface panel |
| 6 | Roof pod - Global Positioning System (GPS) antenna |
| 7 | Frequency Modulation (FM)/Digital radio antenna amplifier |
| 8 | Global Positioning System (GPS) signal splitter - If equipped |
| 9 | Audio Amplifier Module (AAM) |
