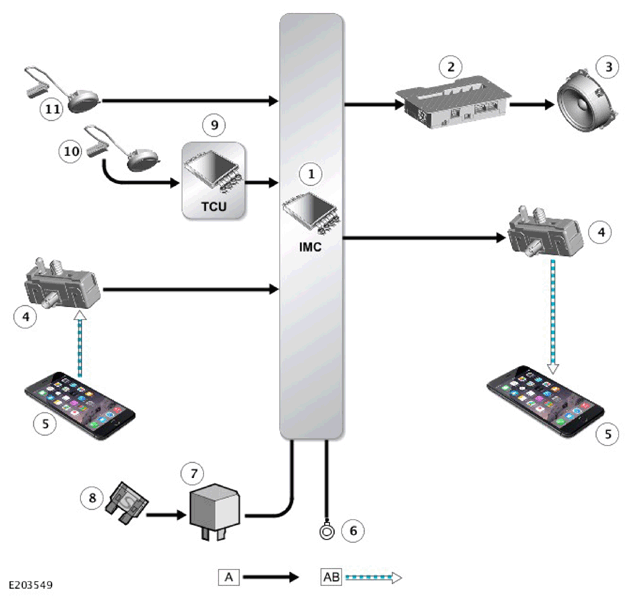

Control Diagram - INCONTROL Touch Pro Systems
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AB = BLUETOOTH®.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master controller (IMC) |
| 2 | Audio Amplifier Module (AAM) |
| 3 | Vehicle speakers |
| 4 | Bluetooth®/WiFi antenna |
| 5 | Mobile phone |
| 6 | Ground |
| 7 | Quiescent Current Control Module (QCCM) relay |
| 8 | Power supply |
| 9 | Microphone - Vehicles with telematics system |
| 10 | Telematics Control Module (TCU) - Vehicles with telematics system |
| 11 | Microphone - Vehicles without telematics system |
