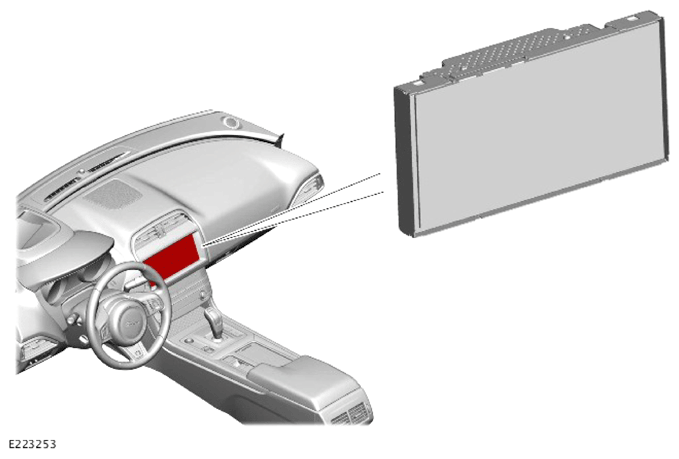

Audio System - Project 8 (G2231240): Description: Touchscreen

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

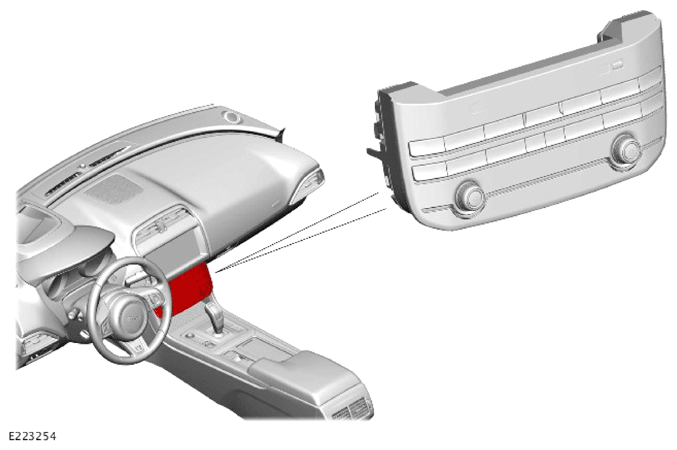

Integrated Control Panel

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Touchscreen (TS) and Integrated Control Panel (ICP) are located in the center of the instrument panel. The TS is connected to the Infotainment Master controller (IMC) by a single Automotive Pixel Link 2 (APIX2) connection. The APIX2 connection provides power and ground connections and also data input and output. Power and ground for the TS and ICP are provided by the IMC.

The TS is controlled by the user using touch icons located in the screen image.

Volume control settings are passed to the TS on the High Speed (HS) Controller Area Network (CAN) comfort bus.

The TS is the primary user interface of the audio system. It communicates with the other components of the audio/infotainment system on the APIX2 connection via the IMC. This allows control of the audio system and other infotainment systems from a single point.

The Jaguar Land Rover (JLR) approved diagnostic equipment enables software updates to be downloaded.
