Audio Amplifier Module
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

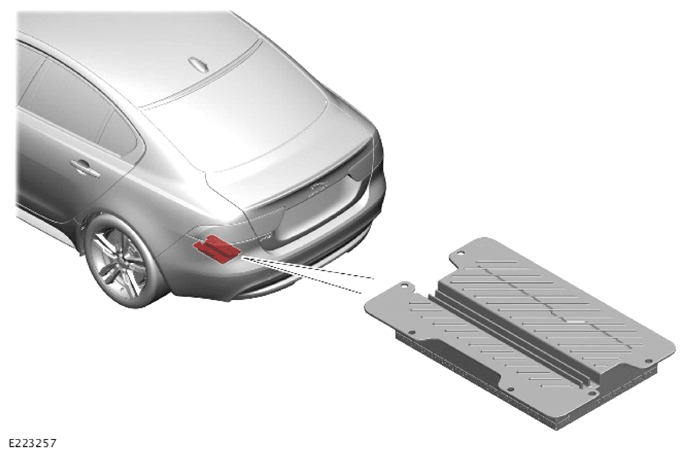

The Audio Amplifier Module (AAM) is located behind the left trim panel in the luggage compartment.
The AAM receives a power supply via a fuse in the Rear Junction Box (RJB):
The sound system uses an AAM specific to the installed system:
- InControl Touch Pro (6 speaker).
- Meridian® Sound System with Subwoofer Speaker (11 speaker)
- Meridian® Surround Sound System with Subwoofer Speaker (16 speaker)
For additional information, refer to: SPEAKERS
