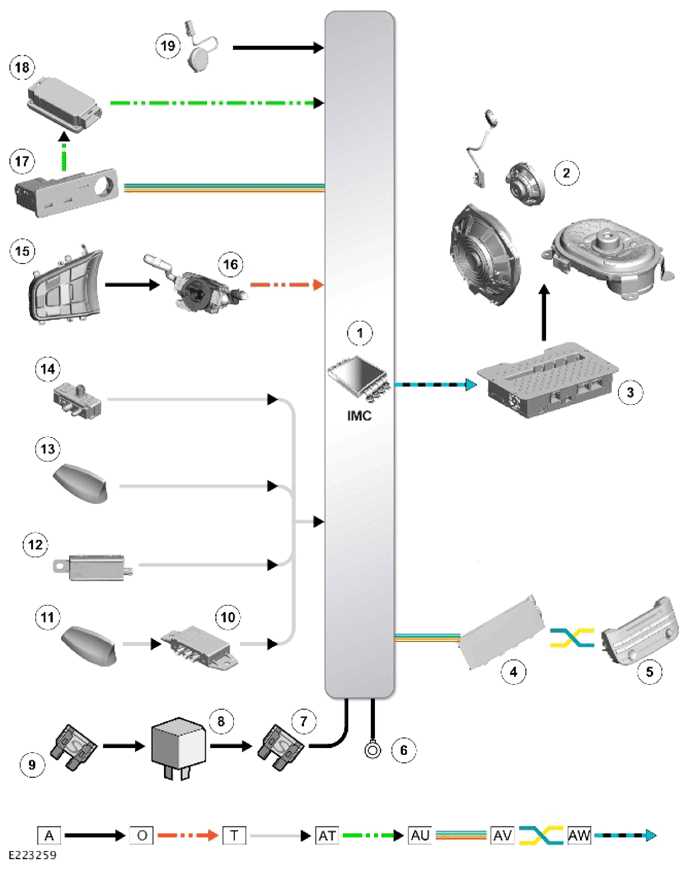

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): T = CO-AXIAL: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AW = BROADR-REACH® ETHERNET
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Vehicle speakers |
| 3 | Audio Amplifier Module (AAM) |
| 4 | Touchscreen (TS) |
| 5 | Integrated Control Panel (ICP) |
| 6 | Ground |
| 7 | Fuse |
| 8 | Quiescent current relay |
| 9 | Fuse |
| 10 | Global Navigation Satellite System (GNSS) signal splitter |
| 11 | Roof pod - GNSS antenna/Digital Audio Broadcasting (DAB) antenna/telematics antenna/Satellite Digital Audio Radio System (SDARS) antenna (North America Specification (NAS) only) |
| 12 | Antenna amplifiers (number and type depend on vehicle specification) |
| 13 | Roof pod DAB antenna |
| 14 | Bluetooth®/WiFi antenna (2 off) |
| 15 | Left steering wheel switchpack |
| 16 | Clockspring (CLKSPG) |
| 17 | Front portable media interface panel |
| 18 | Universal Serial Bus (USB) 3.0 repeater |
| 19 | Microphone - Voice control system |
