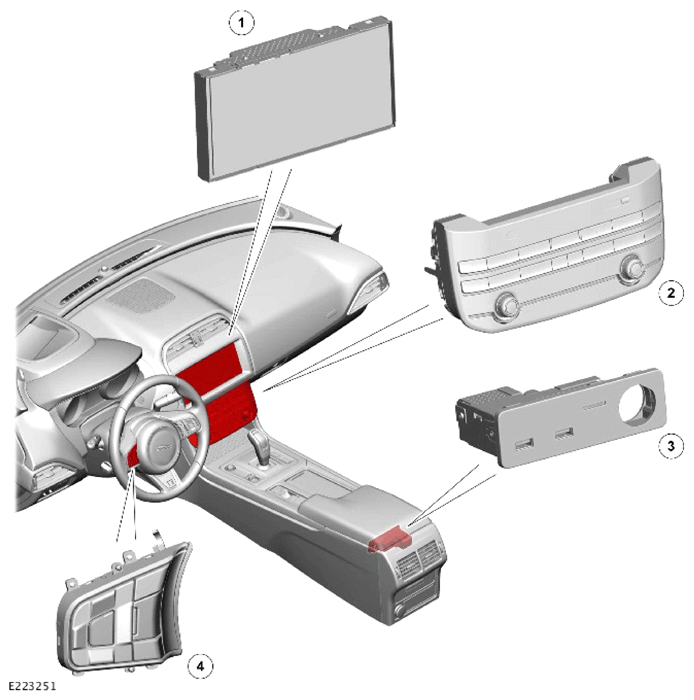

Component Location 1 Of 2
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Touchscreen (TS) |
| 2 |
Integrated Control Panel (ICP) |
| 3 |
Front portable media interface panel |
| 4 |
Left steering wheel switchpack |

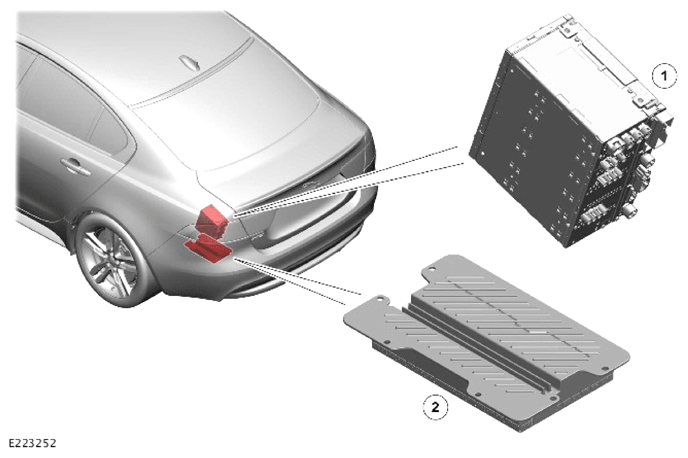

Component Location 2 of 2
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Infotainment Master Controller (IMC) |
| 2 |
Audio Amplifier Module (AAM) |
