Left Steering Wheel SWITCHPACK
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

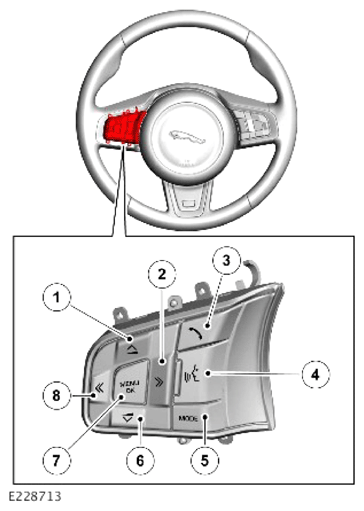

| ITEM | DESCRIPTION |
|---|---|
| 1 | Volume increase switch |
| 2 | Seek, next radio preset, next track, scroll up mobile phone list switch |
| 3 | Mobile phone answer/end call switch |
| 4 | Voice control switch |
| 5 | 'MODE' switch |
| 6 | Volume decrease switch |
| 7 | Menu/OK switch (Instrument Cluster (IC) menu control) |
| 8 | Seek, previous radio preset, previous track, scroll down telephone list switch |
The left steering wheel switchpack is on the left side of the steering wheel.
The switches are a resistive ladder type which apply a different voltage to the left steering wheel switchpack in response to different switches being pressed.
The left steering wheel switchpack converts the voltage received from the left steering wheel switchpack into a Local Interconnect Network (LIN) message. The LIN bus message goes to the Infotainment Master Controller (IMC) via the Steering Wheel Module (SWM).
The left steering wheel switchpack controls the following functions:
- MODE - Press repeatedly to scroll through all audio/video sources.
- » Short press up:
- To select the next radio preset.
- To select the next track on chosen audio source.
- When the mobile phone is in use, press to scroll up lists of calls or phonebook entries.
- «Short press down:
- To select the previous radio preset.
- To select the previous track or start of current track on chosen audio source.
- When the mobile phone is in use, press to scroll down lists of calls or phonebook entries.
- Volume increase for any audio source.
- Volume decrease for any audio source.
The 'MENU/OK' switch is for use with the Instrument Cluster (IC) menu.
For additional information, Refer to: INSTRUMENT CLUSTER
