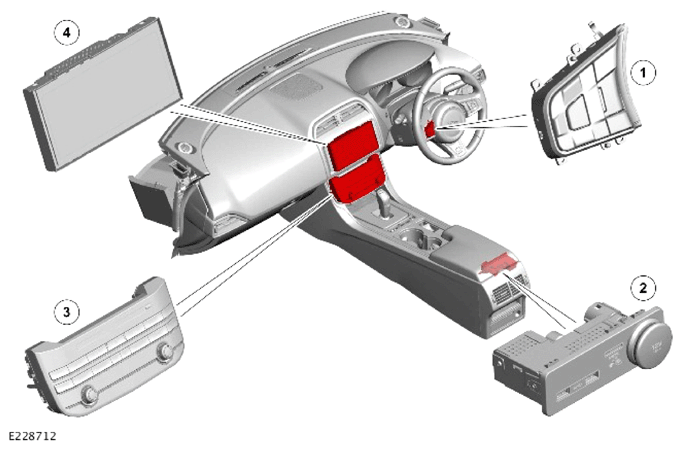

Component Location - 1 Of 2
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left steering wheel switchpack |
| 2 | Front portable media interface panel |
| 3 | Integrated Control Panel (ICP) |
| 4 | Touchscreen (TS) |

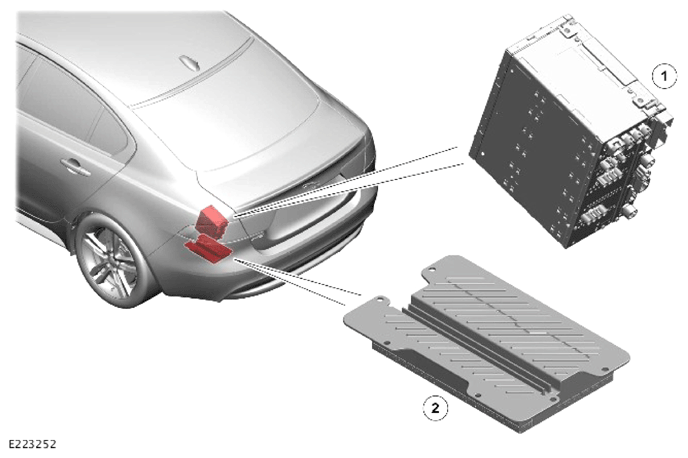

Component Location - 2 of 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | Audio Amplifier Module (AAM) |
