Torque Specifications

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

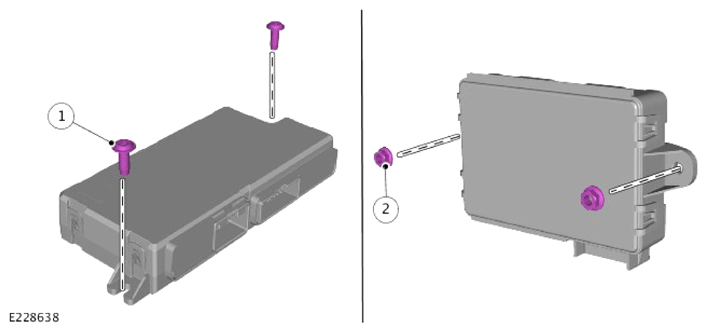

COMPONENT TORQUE LOCATION

G13914892Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  DESCRIPTION NM LB-FT LB-IN
1 Driver Seat Module (DSM) screws 3 - 27
2 Remote Function Actuator (RFA) nuts 9 - 80
