Remote Function Actuator (G2354485): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the right rear seat bolster.
Refer to: REAR SEAT BOLSTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

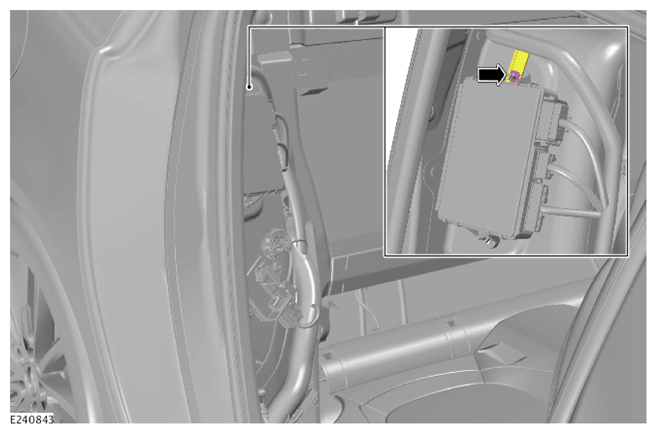

Release the wiring harness.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

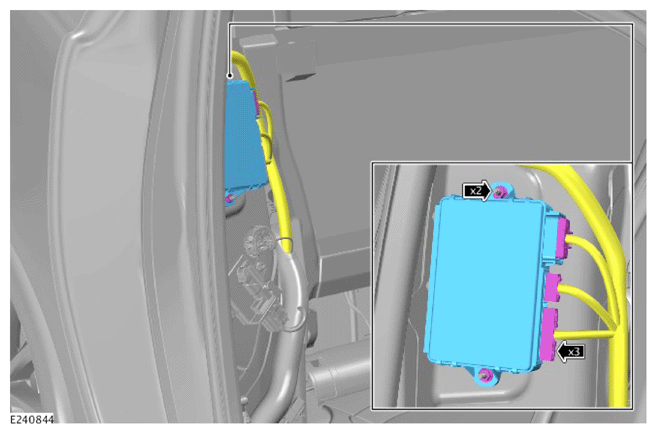

- Disconnect the 3 electrical connectors.
- Remove the 2 nuts.
- Remove the Remote Function Actuator (RFA).
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

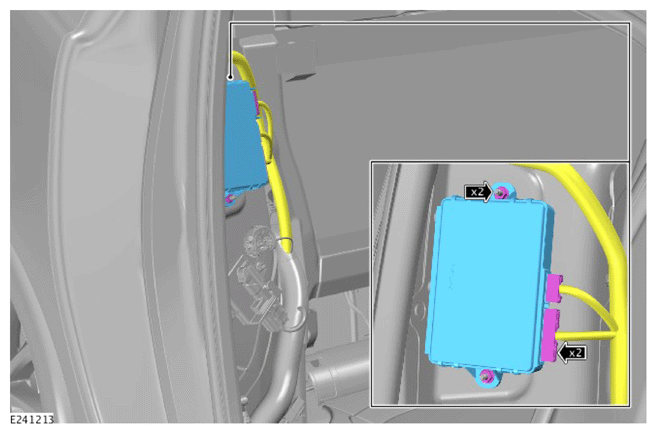

- Disconnect the 2 electrical connectors.
- Remove the 2 nuts.
- Remove the RFA.
